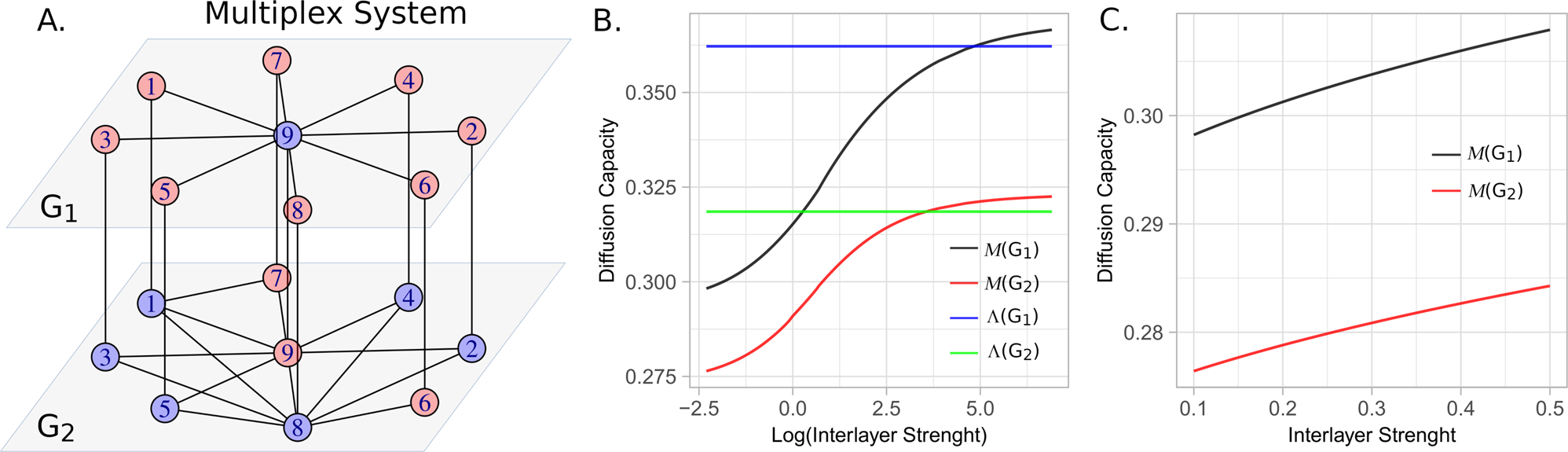

Fig. 4: Multiplex network formed by layers G1 and G2 connected by weighted links with equal interlayer strength.
From: Diffusion capacity of single and interconnected networks
Nodes in blue/red represent those that decrease/increase their diffusion capacity in the fully coupled multilayer structure, compared to their diffusion capacity in isolation (A). Diffusion Capacity Λ of G1, G2 and, for different interlayer strengths (logarithmic scale) the multilayer diffusion capacity \({{{{{{{\mathcal{M}}}}}}}}({G}_{1})\) and \({{{{{{{\mathcal{M}}}}}}}}({G}_{2})\) (B). Evolution of the Multilayer diffusion Capacity for small interlayer strength values (C).
