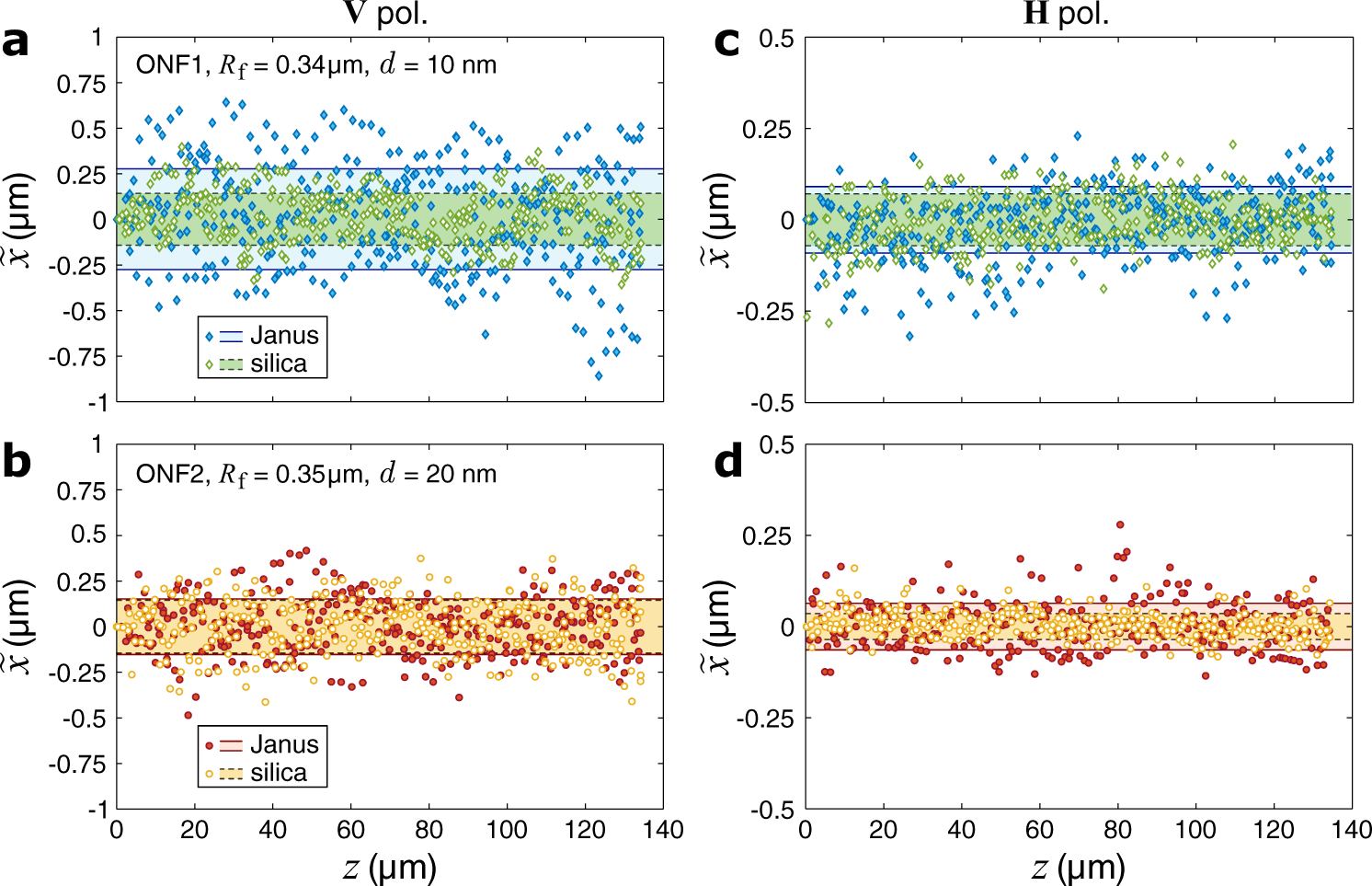

Fig. 6: Optical trapping dynamics of Janus and silica particles propelled by light near an ONF.

From: Evanescent field trapping and propulsion of Janus particles along optical nanofibers

Fig. 6

(Supplementary Movie 3)a, b Typical reduced trajectories of a JP compared to a SP in the same sample, with the ONF coupled to beam 1 with V polarization. c, d Same for H-polarized input. Optical power transmitted through the ONF was 70 mW, the gold thickness and ONF radius values are stated in the legends, the shaded bands mark the standard deviation ranges for the data.
