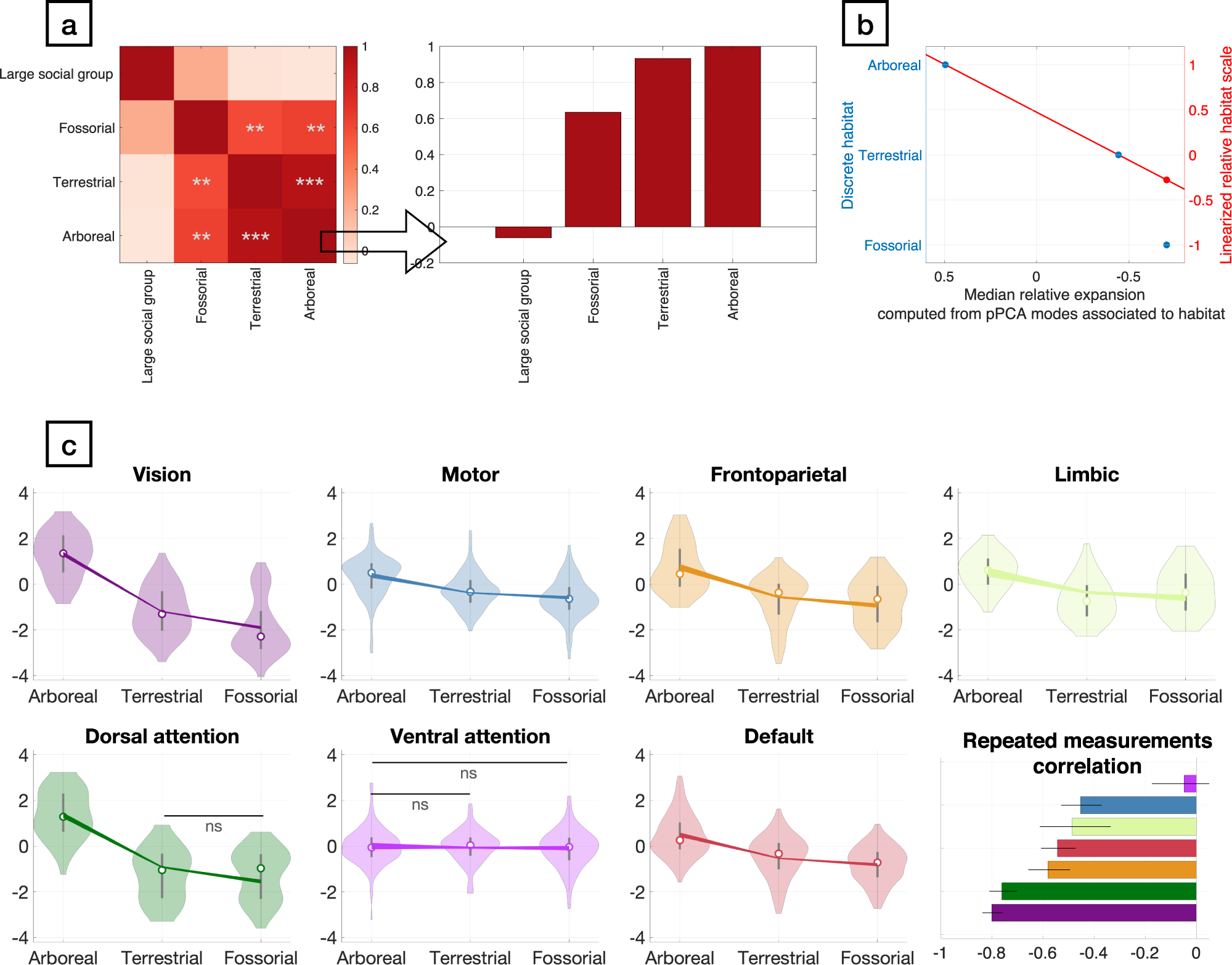

Fig. 4: The correlation structure between expansion patterns associated with ecological and behavioural variables reveals a putative ordering of cortical adaptation to habitat complexity.
From: Evolution of cortical geometry and its link to function, behaviour and ecology
a We used two-sided Pearson correlation (n = 21, the number of pPCA dimensions used in the analysis) between the matrices of pairwise effect measures of each observed ecological and behavioural variable to highlight the ordered nature of the effect of habitat complexity on the differential expansion of cortical areas. Significant correlation are indicated by *p < 0.05, **p < 0.01, ***p < 0.001. Statistical information is provided in Supplementary Data 4a. b Computation of relative measurement correlation requires a metric for the explanatory variables of the individual groups. A measure for the relative habitat complexity of fossorial species (−0.278) is computed from a tentative ordering of habitat complexity and by fixing the two more complex habitats that contain “arboreal” (1) and “terrestrial” (0) species. This scaling is applied globally to all relative expansion maps and does thus not bias the analysis of relative expansion of specific cortical regions with respect to each other amongst habitats. c Analysis of the effects of habitat on the surface area of functionally defined regions in the cerebral cortex revealed a putative ordering related to habitat complexity. Violin plots of the distribution of local expansion values in each region for each map associated with a specific habitat are shown together with median values and first and last quartile + /− 1.5 interquartile range (IQR), as well as 95% percentiles of the output of the repeated measurements correlation model of the same values. The dorsal attention areas for terrestrial and fossorial and the ventral attention regions for arboreal and terrestrial species were the only regions showing no significant (two-tailed Friedman test) effects in terms of relative expansion, while the limbic areas where the only ones to show significant relative expansion in association to fossoriality (r = 0.628, p < 1e-6, 95% CI = [0.584, 0.671], FDR-corrected). All statistical information is available in Supplementary Data 4b). Repeated measurement correlation analysis (shown as predicted correlation for each functionally defined region together with 95% confidence intervals) corroborated this result by indicating non-significant effects only for the ventral attention network (Supplementary Data 4c).
