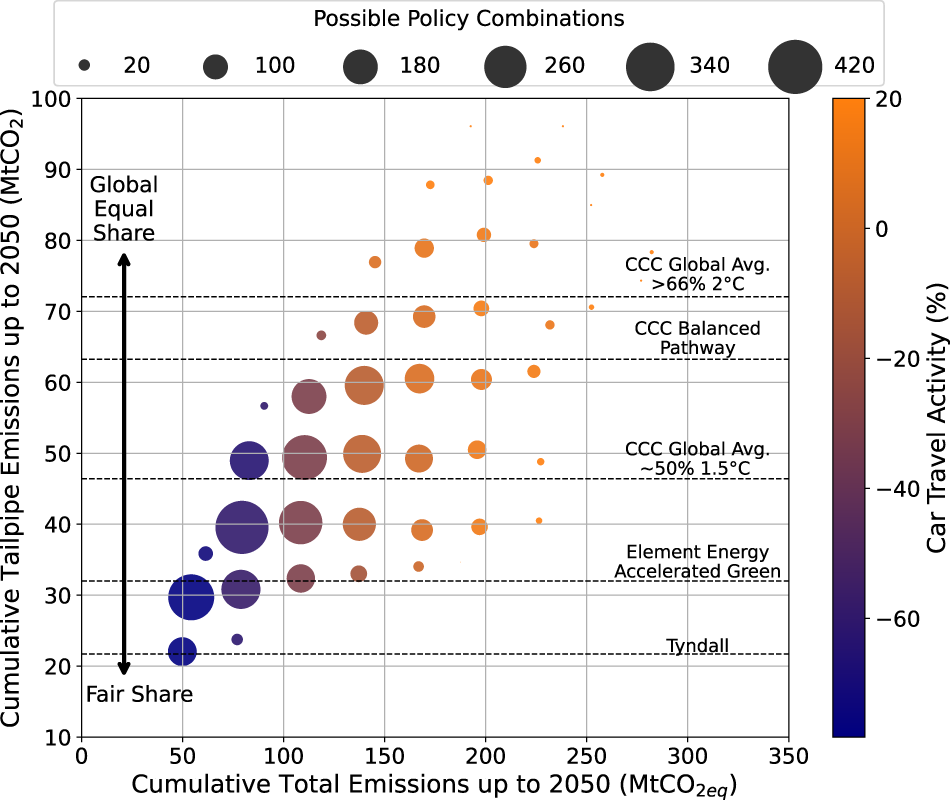

Fig. 4: The relationship between cumulative tailpipe CO2 emissions and total CO2eq emissions for different policy combinations.
Cumulative tailpipe emissions and total emissions, including use-phase (tailpipe and EV electricity), WTT fuel and embedded emissions, between 2020 and 2050, are plotted for varying magnitudes of car travel activity, scrapping, light-weighting, retrofitting, ICEV phase-out, regulated EV manufacture and electricity decarbonisation policies. Magnitudes of modal shift are distinguished by colour with blue (dark) corresponding to a modal shift of −80% and orange (light) to a modal shift of +20% (baseline case). The results are grouped by number of policy combinations within that emissions range with the largest bubble corresponding to 400 distinct combinations of the policies and the smallest bubble to 2. Five carbon budgets are plotted along the tailpipe emissions axis (y axis) because the carbon budgets are limited to the boundary of cars in London and do not include emissions outside London, such as electricity generation emissions or car manufacturing emissions.
