Fig. 2: Morphology and textural properties of MoO3-Fe2O3 redox catalysts.

From: Coupling acid catalysis and selective oxidation over MoO3-Fe2O3 for chemical looping oxidative dehydrogenation of propane

Fig. 2

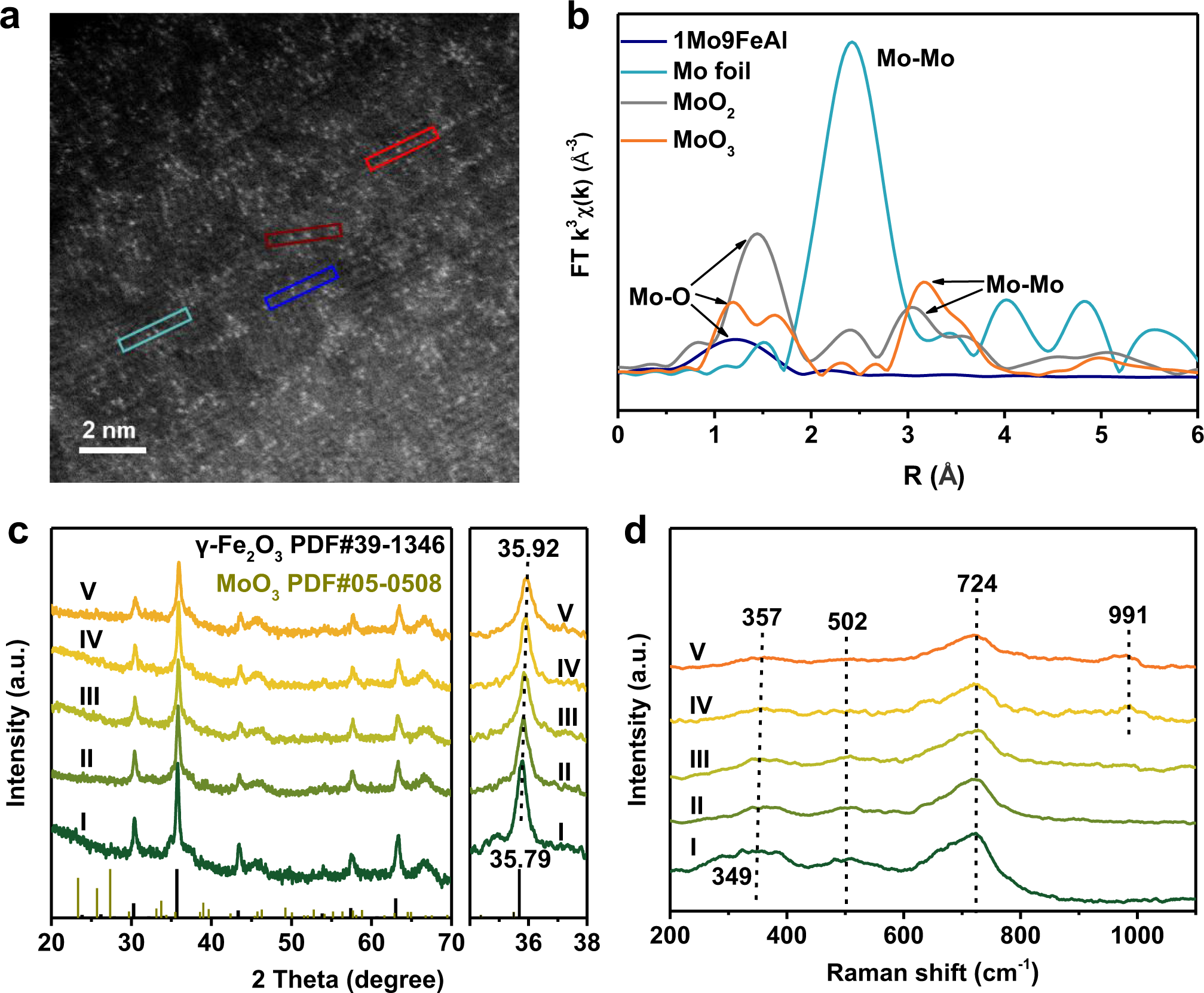

(a) AC-HAADF-STEM image of 1Mo9FeAl. (b) EXAFS spectra at Mo K-edge for 1Mo9FeAl, Mo foil, MoO2, and MoO3. XRD patterns (c) and Raman spectra (d) of as-prepared redox catalysts. I, II, III, IV, and V are for FeAl, 1Mo15FeAl, 1Mo12FeAl, 1Mo9FeAl and 1Mo6FeAl, respectively. The a.u. stands for arbitrary units.
