Fig. 4: Substrate scope of Ru-catalyzed hydrogenation reactions. | Nature Communications

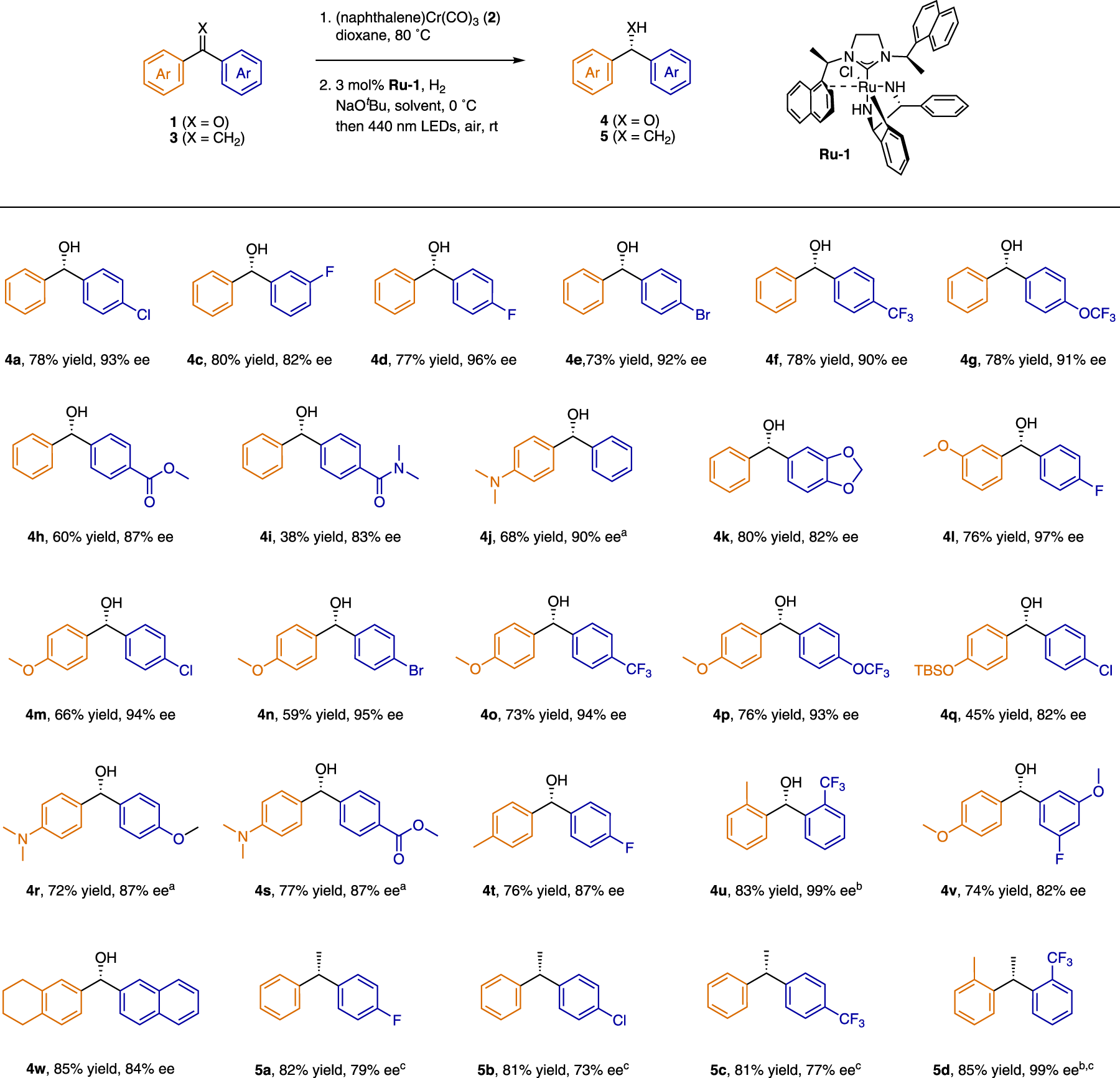

Fig. 4: Substrate scope of Ru-catalyzed hydrogenation reactions.

From: Asymmetric hydrogenation of 1,1-diarylethylenes and benzophenones through a relay strategy

Fig. 4: Substrate scope of Ru-catalyzed hydrogenation reactions.

Synthesis of compounds bearing a chiral gem-diaryl motif from either 1,1-diarylethylenes or benzophenones by a sequence involving selective arene exchange and stereoselective asymmetric hydrogenation. Reaction conditions, unless otherwise stated: (1) 1 (0.2 mmol), 2 (0.3 mmol), dioxane (2 mL), 80 °C, 24 h. (2) Ru-1 (3 mol%), NaOtBu (15 mol%), toluene (1.5 mL), H2 (5 atm), 0 °C, 36 h; then irradiation with 440 nm LEDs for 2 h in air at room temperature. a(1) 2 (0.22 mmol). b(2) Room temperature. c(2) Hexane (1.5 mL), H2 (50 atm). Isolated yields were reported. The absolute configurations of 4a, 4e, 4h, and 4m were S, as determined by comparison of their optical rotations with reported data.
