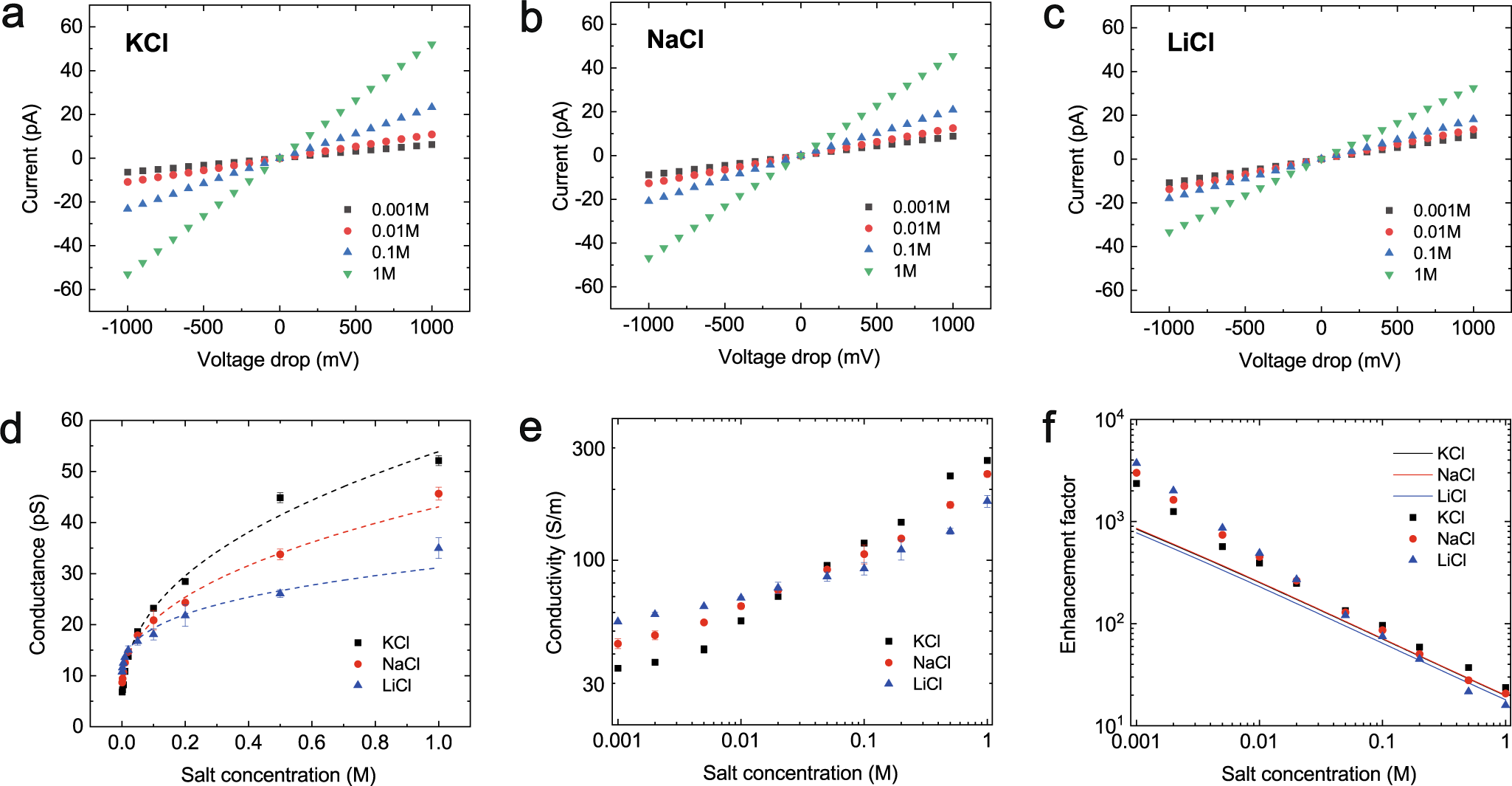

Fig. 4: Ionic conductance of individual carbon nanotube nanofluidic device.
From: Enhanced osmotic transport in individual double-walled carbon nanotube
For single carbon nanotube nanochannel, a–c show the I–V curves recorded at different solution concentrations with (a) KCl, (b) NaCl, and (c) LiCl. d Nanochannel ionic conductance, e conductivity, and f conductivity enhancement as a function of solution concentration for KCl, NaCl, and LiCl. The dashed lines in (d) are used to guide the eyes. The curves in (f) are theoretical predictions. Error bars are derived from the standard deviation of experimentally measured voltage drop currents. Source data of this figure are provided as a Source Data file.
