Fig. 7: Continuous measurements of diffusion coefficient and internal resistance using the ICI method during long-term cycling. | Nature Communications

Fig. 7: Continuous measurements of diffusion coefficient and internal resistance using the ICI method during long-term cycling.

From: Rapid determination of solid-state diffusion coefficients in Li-based batteries via intermittent current interruption method

Fig. 7

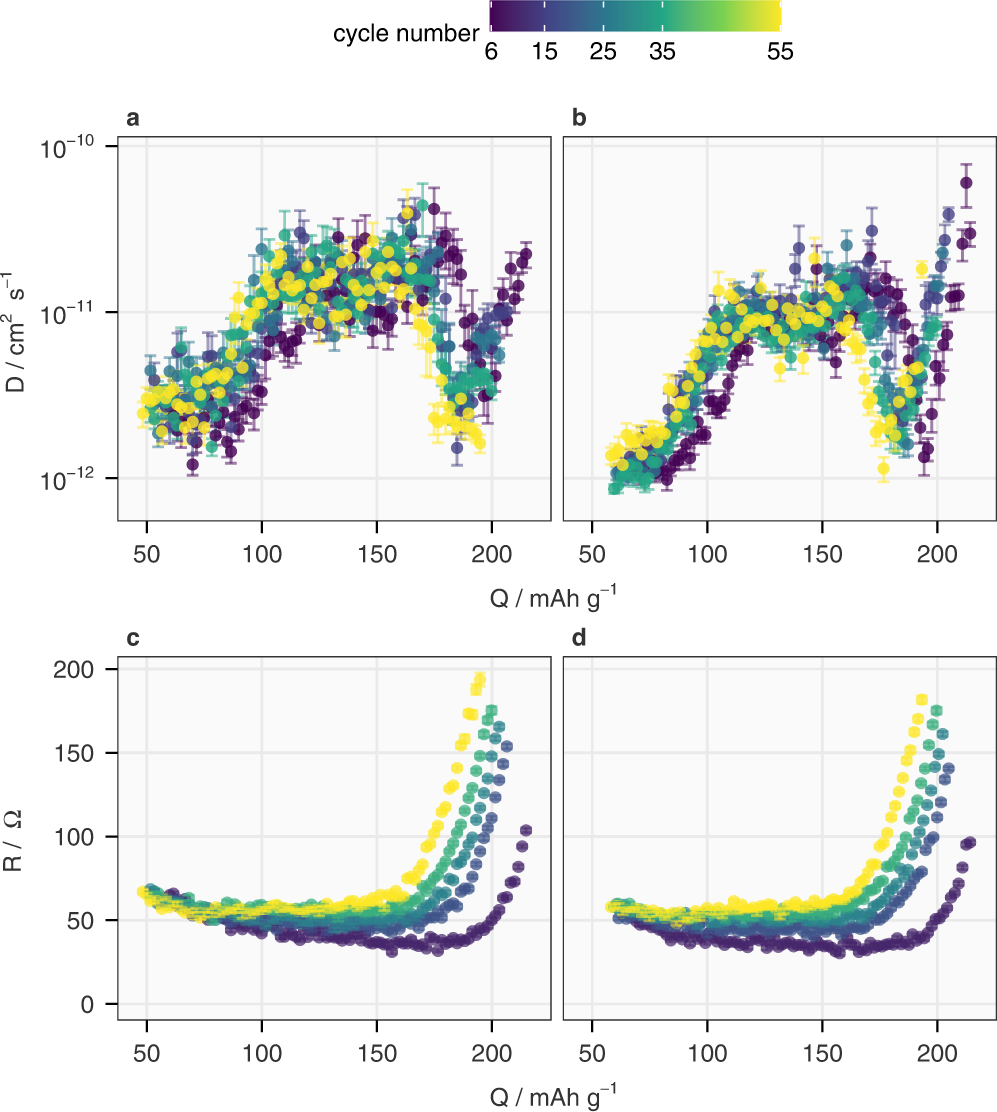

In cycles 6, 15, 25, 35 and 55, the Li-ion diffusion coefficient in NMC811 (D) of Cell 1 derived by the ICI method is plotted against the specific capacity (Q) during charging and discharging are plotted in a, b, respectively, while the internal resistance (R) from the same ICI measurements during charging and discharging are plotted in c, d, respectively. Only values with E ≥ 3.7 V, where the ICI method is applicable as discussed above, are shown. The error bars originate from the standard deviation of linear regression.
