Fig. 5: Quantification of structure evolution under electric field.

From: Giant dynamic electromechanical response via field driven pseudo-ergodicity in nonergodic relaxors

Fig. 5: Quantification of structure evolution under electric field.The alternative text for this image may have been generated using AI.

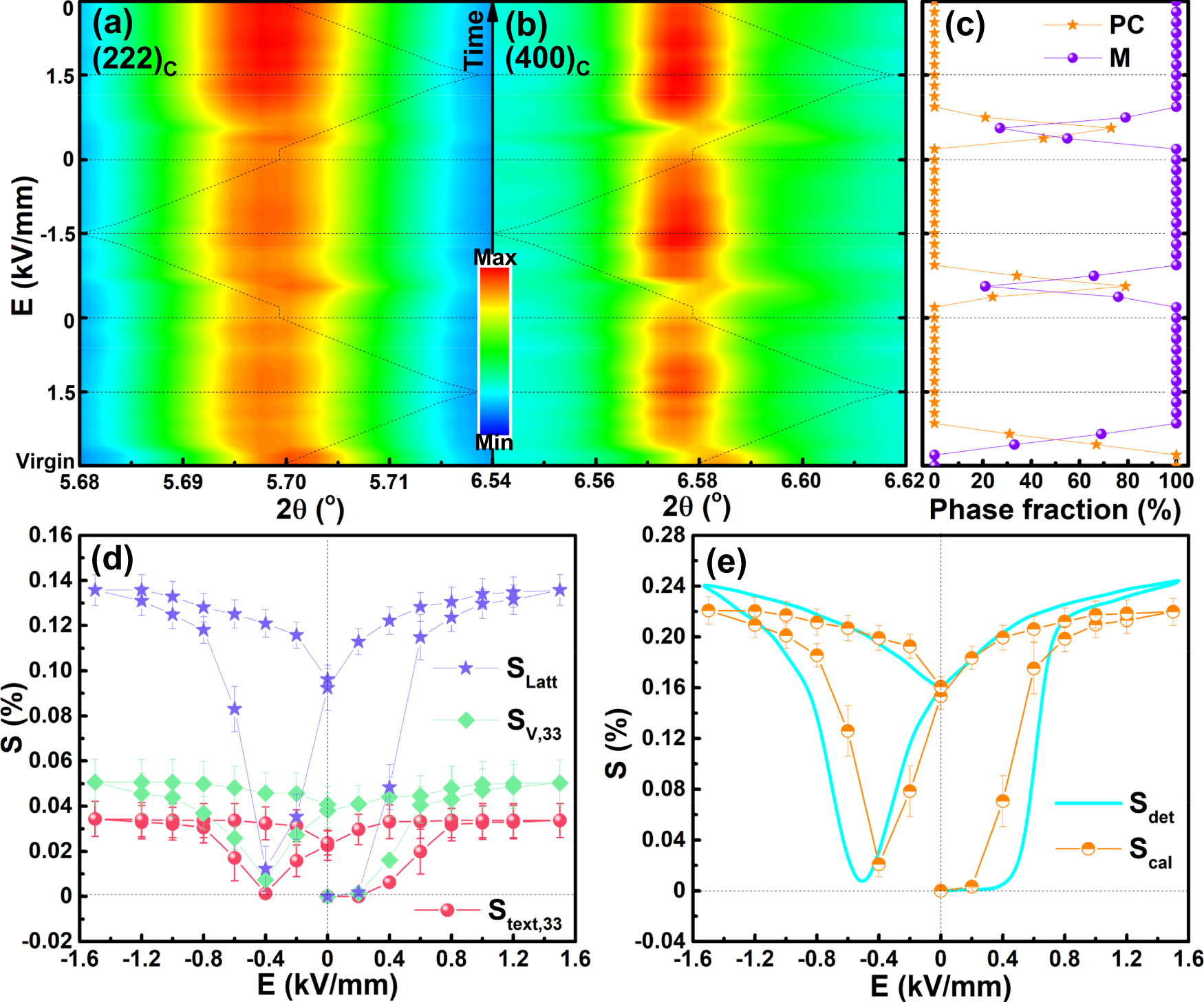

Evolution of a (222)C, b (400)C diffraction lines and c phase fraction for PL8.3Z66T34 sample under different external electric fields. Quantification of d lattice strain Slatt, volumetric strain SV,33, domain texture strain Stext,33 and e total calculated strain Scal and detected strain loop Sdet. The data are presented as the mean ± SEM.
