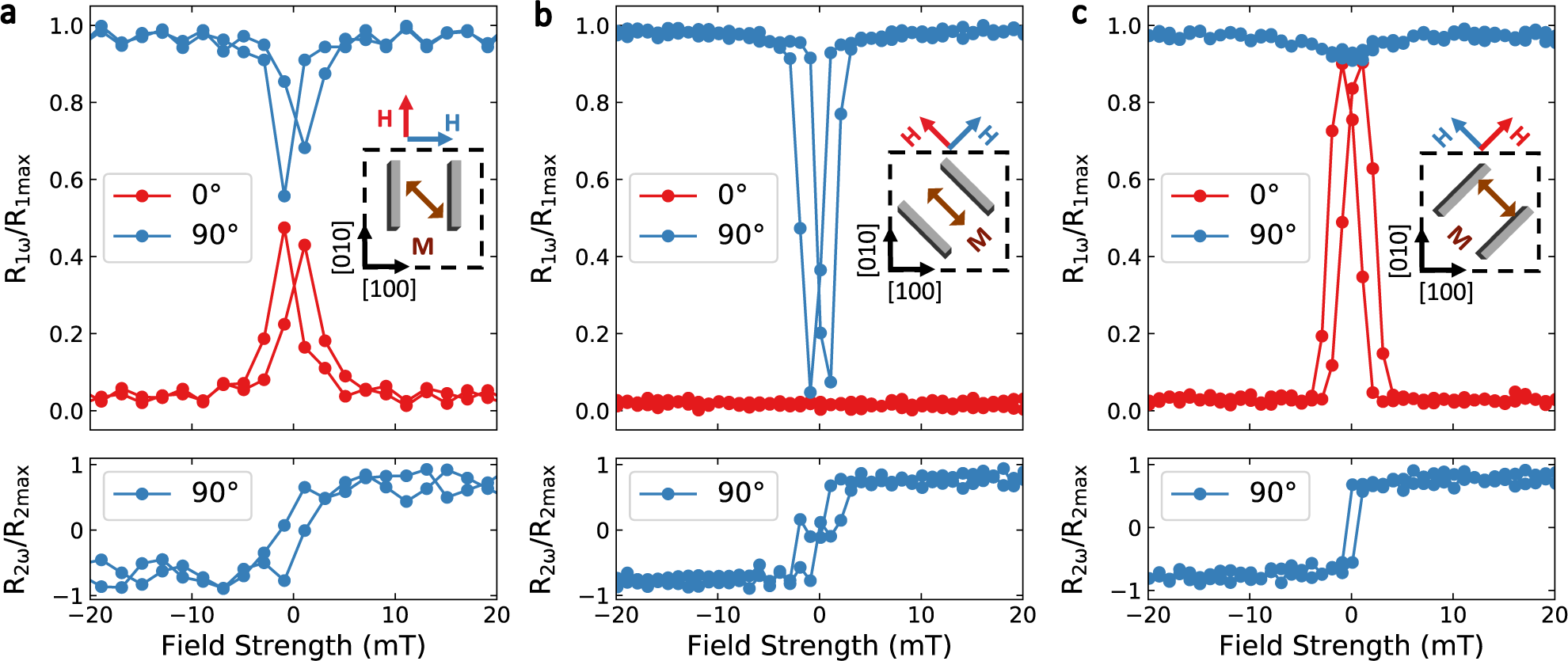

Fig. 3: Magnetic field dependence of nonlocal measurements.
From: A puzzling insensitivity of magnon spin diffusion to the presence of 180-degree domain walls
Normalized nonlocal resistances for the Pt wires along a [010], b [1\(\bar{1}\)0], and c [110] axes for a wire separation of 1 µm. In each panel, the blue line corresponds to a magnetic-field scan perpendicular to the Pt wires and the red line corresponds to a field scan parallel to the Pt wires. For each of these cases, the upper (lower) panel shows the first (second) harmonic nonlocal resistance. We plot the second-harmonic curves only for ϕ = 90° because the second-harmonic signals for ϕ = 0° through the film to the detector where remain near zero in all cases.
