Fig. 4: Photocurrent pulse jitter characterization.

From: Femtosecond-precision electronic clock distribution in CMOS chips by injecting frequency comb-extracted photocurrent pulses

Fig. 4: Photocurrent pulse jitter characterization.The alternative text for this image may have been generated using AI.

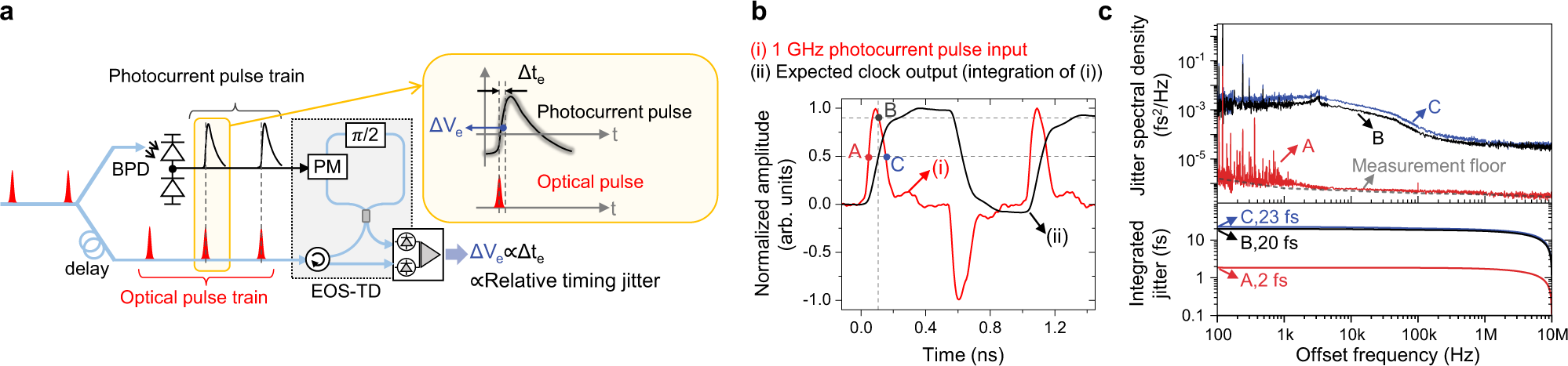

a Experimental setup to characterize the timing jitter of photocurrent pulses at different temporal positions using the EOS-TD29. b (i) Measured photocurrent pulse waveform and (ii) integrated clock waveforms. c Measured timing jitter power spectral densities at different locations (corresponds to points A, B, and C in Fig. 4b) of photocurrent pulses.
