Fig. 4: Relationship between DKP stereoisomerase NozR and representative Asp/Glu racemase family members33,34,35,36,37,38.

From: Unveiling an indole alkaloid diketopiperazine biosynthetic pathway that features a unique stereoisomerase and multifunctional methyltransferase

Fig. 4

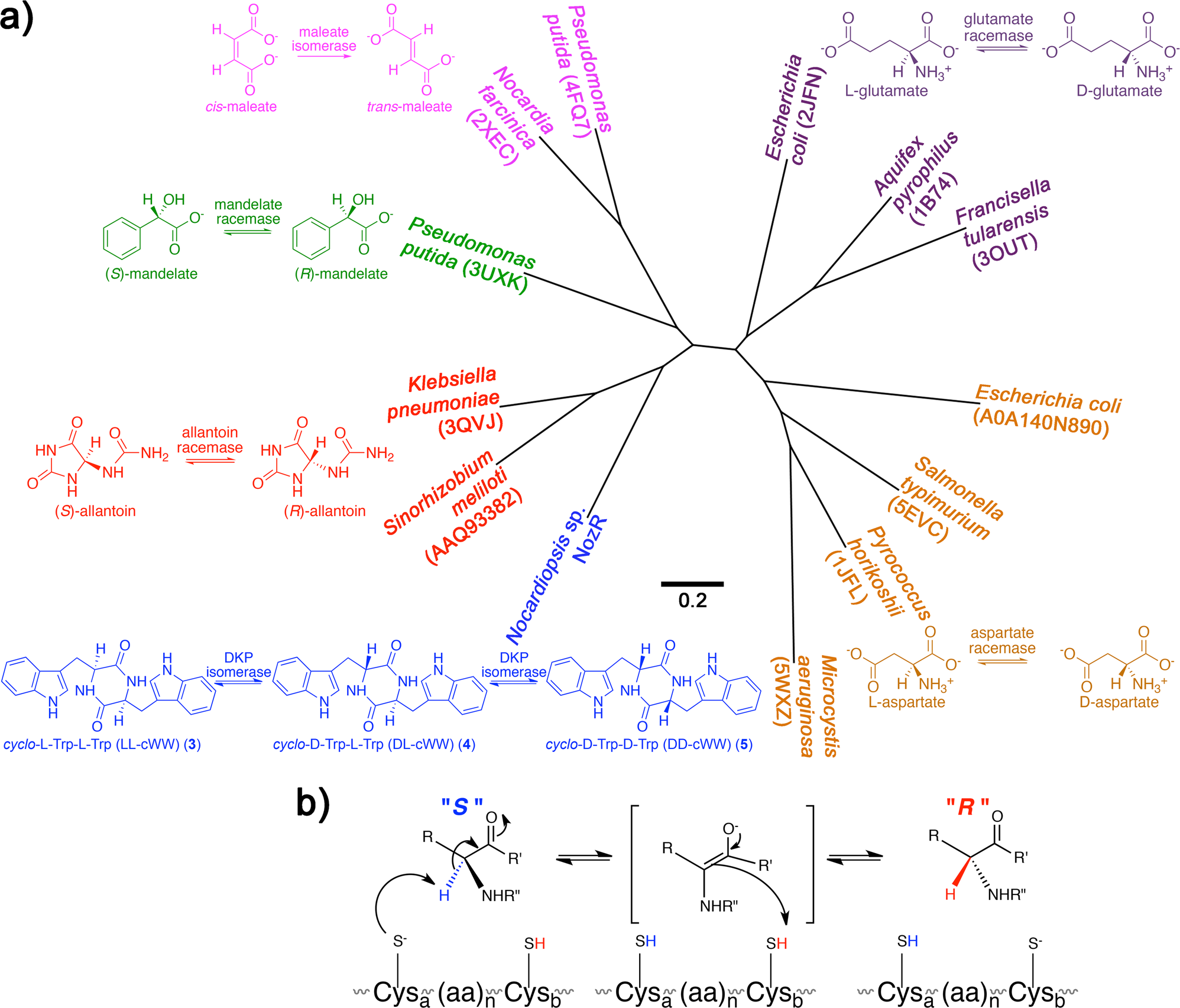

a An unrooted neighbor-joining tree supports the phylogenetic relationship of NozR with representative functionally characterized members of the Asp/Glu racemase family. Species names and protein accession numbers for these isomerases are color-coded to match schematics of typical reactions catalyzed by each. b In prototypical reactions catalyzed by Asp/Glu racemases, one residue of the catalytic dyad (e.g. Cysa) deprotonates the α-H of a stereoisomer to yield an enolate intermediate, which is reprotonated via the other catalytic dyad residue (e.g. CysB) from the opposite face of the molecule to yield reversible inversion of configuration.
