Fig. 2: Structural and textural characterisation of Cu-MOF-808.
From: Synergistic binding sites in a metal-organic framework for the optical sensing of nitrogen dioxide

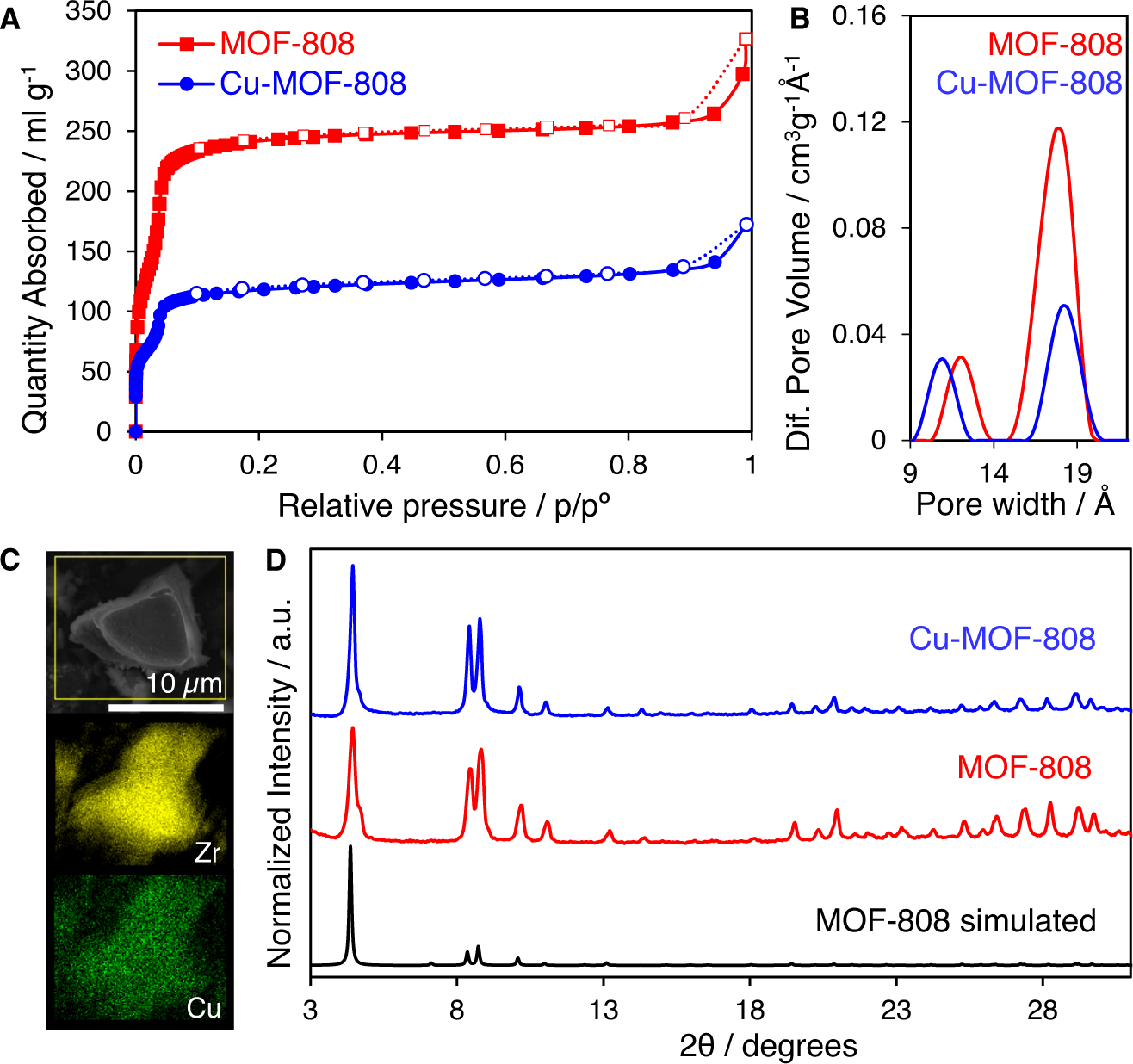

A N2 adsorption/desorption isotherms at 77 K demonstrate a reduction in the surface area following copper incorporation. B Pore size distribution (PSD) analysis shows differences between pristine and Cu-MOF-808 material. C Elemental mapping highlights the spatial distribution of Zr (yellow) and Cu (green) in Cu-MOF-808. D PXRD data of the synthesised materials compared with calculated data for the MOF-808 crystal structure.
