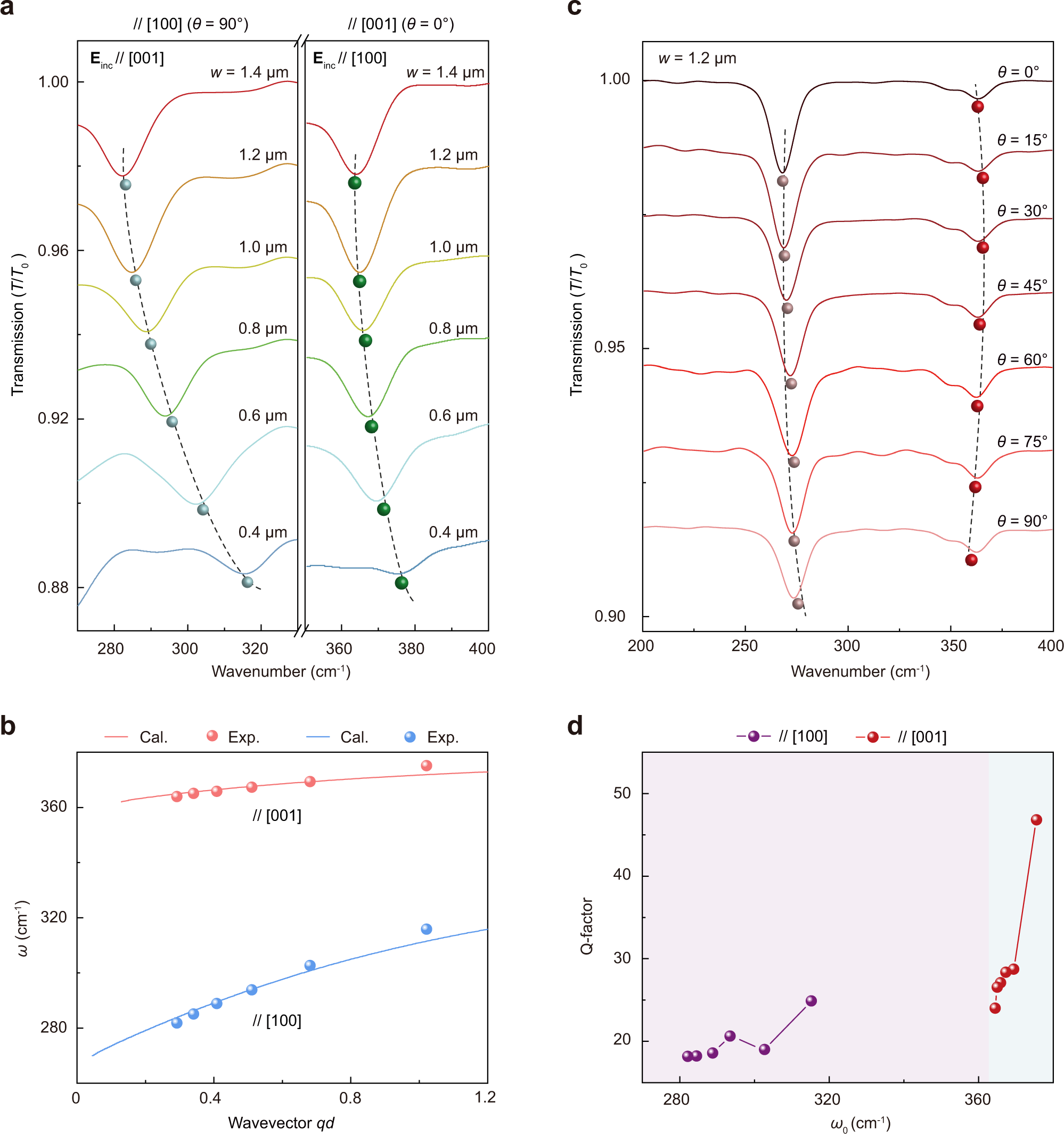

Fig. 4: Far-field excitations of tunable THz HPhPs in α-MoO₃ one-dimensional periodic tuner patterns.
