Fig. 2: Comparison of workflows for Cryo EPty-SPA and TEM-SPA 3D reconstructions.

From: Cryogenic electron ptychographic single particle analysis with wide bandwidth information transfer

Fig. 2

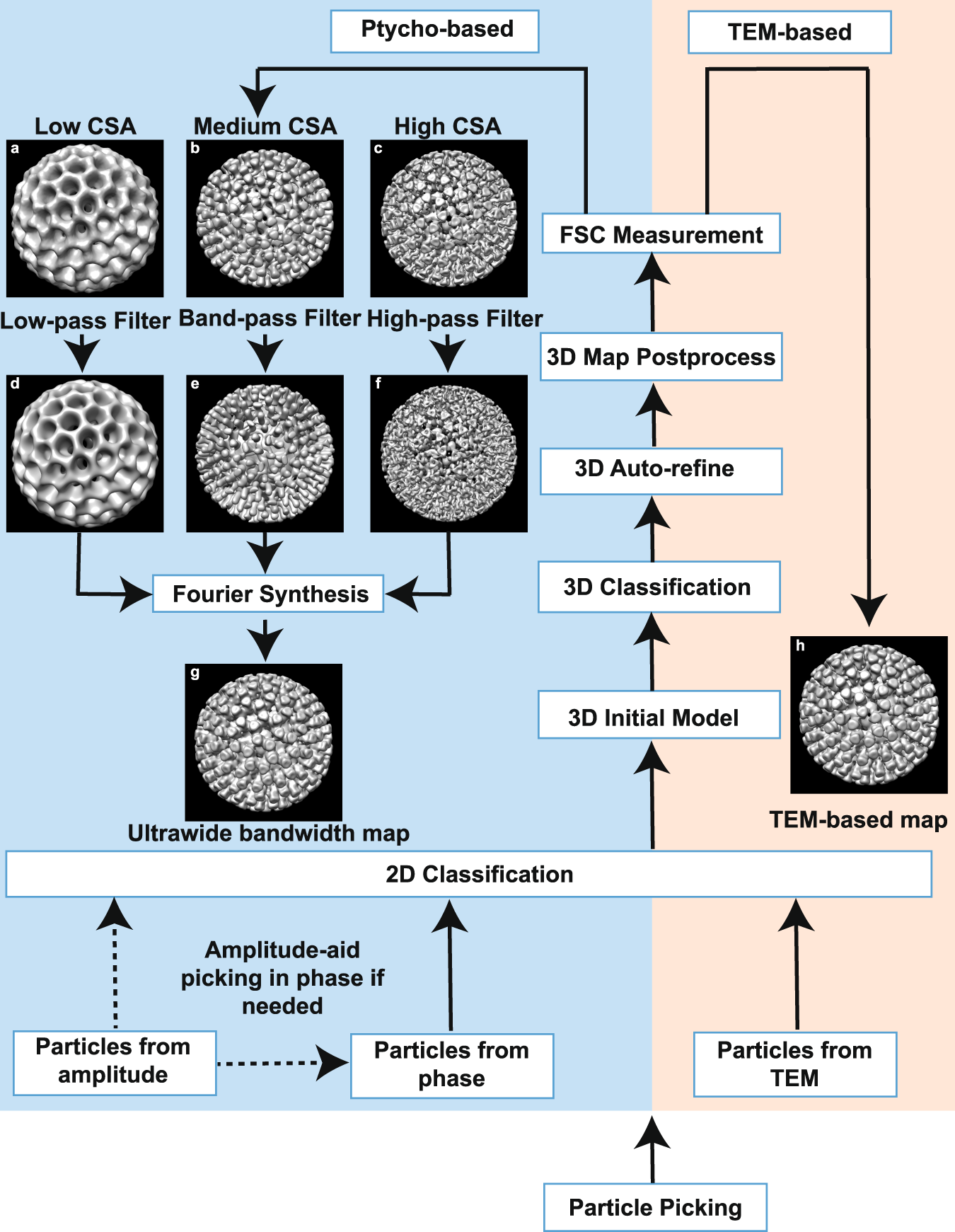

a–c 3D electron density maps for low, medium, and high CSAs respectively. d–f Corresponding bandpass filtered maps of a–c, using the selected bandpass ranges where the information transfer is strongest. g Ultrawide bandwidth map obtained by Multi-band Fourier Synthesis (h) Band-limit map reconstructed by conventional TEM-SPA.
