Fig. 5: Structure evolution of NVO electrode.
From: Solvent control of water O−H bonds for highly reversible zinc ion batteries

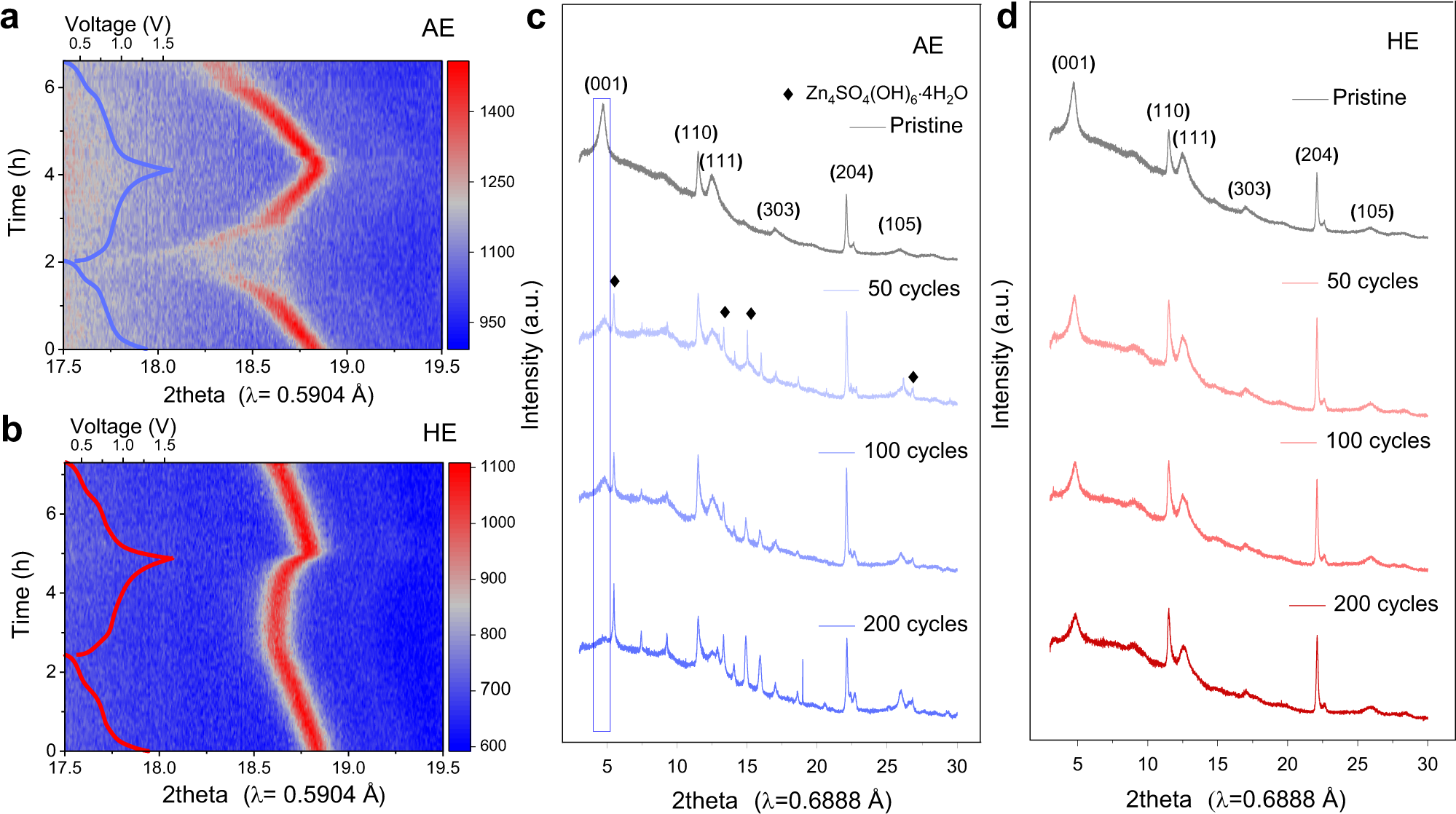

Contour plot for NVO (204) reflection, using a AE and b HE as electrolyte, in which the (204) reflection evolutes along with corresponding charge/discharge curve; synchrotron-based XRPD patterns for NVO electrodes following cycling in c AE and d HE.
