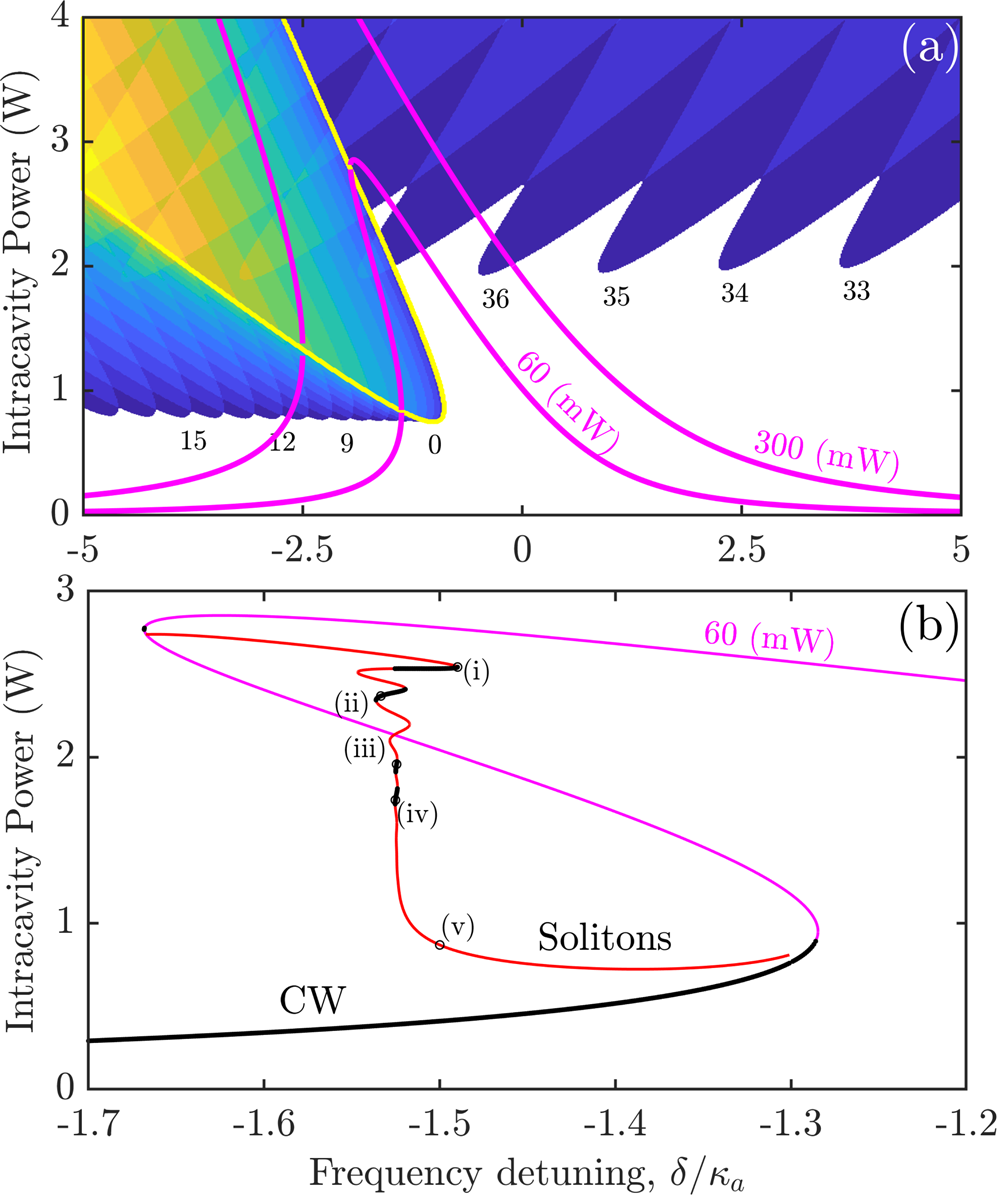

Fig. 2: Nonlinear single-mode solutions and soliton families.
From: Two-colour dissipative solitons and breathers in microresonator second-harmonic generation
a Magenta lines show the single-mode (continuous-wave (CW)) solutions numerically computed for the on-chip powers \({{{{{{{\mathcal{W}}}}}}}}=60\) mW and 300 mW. Blue-yellow colors show the CW instability boundaries relative to the generation of the ±μ sideband pairs. μ values are indicated where possible. b A family of the soliton states (red is unstable and black is stable) and CW state (black is stable and magenta is unstable) vs. detuning: ε/2π = 95 GHz, pump wavelength is 1552 nm.
