Fig. 4: Gallery of PGT (PG ligands in the CRD1∆ SC structure.

From: Structural insights into cardiolipin replacement by phosphatidylglycerol in a cardiolipin-lacking yeast respiratory supercomplex

Fig. 4

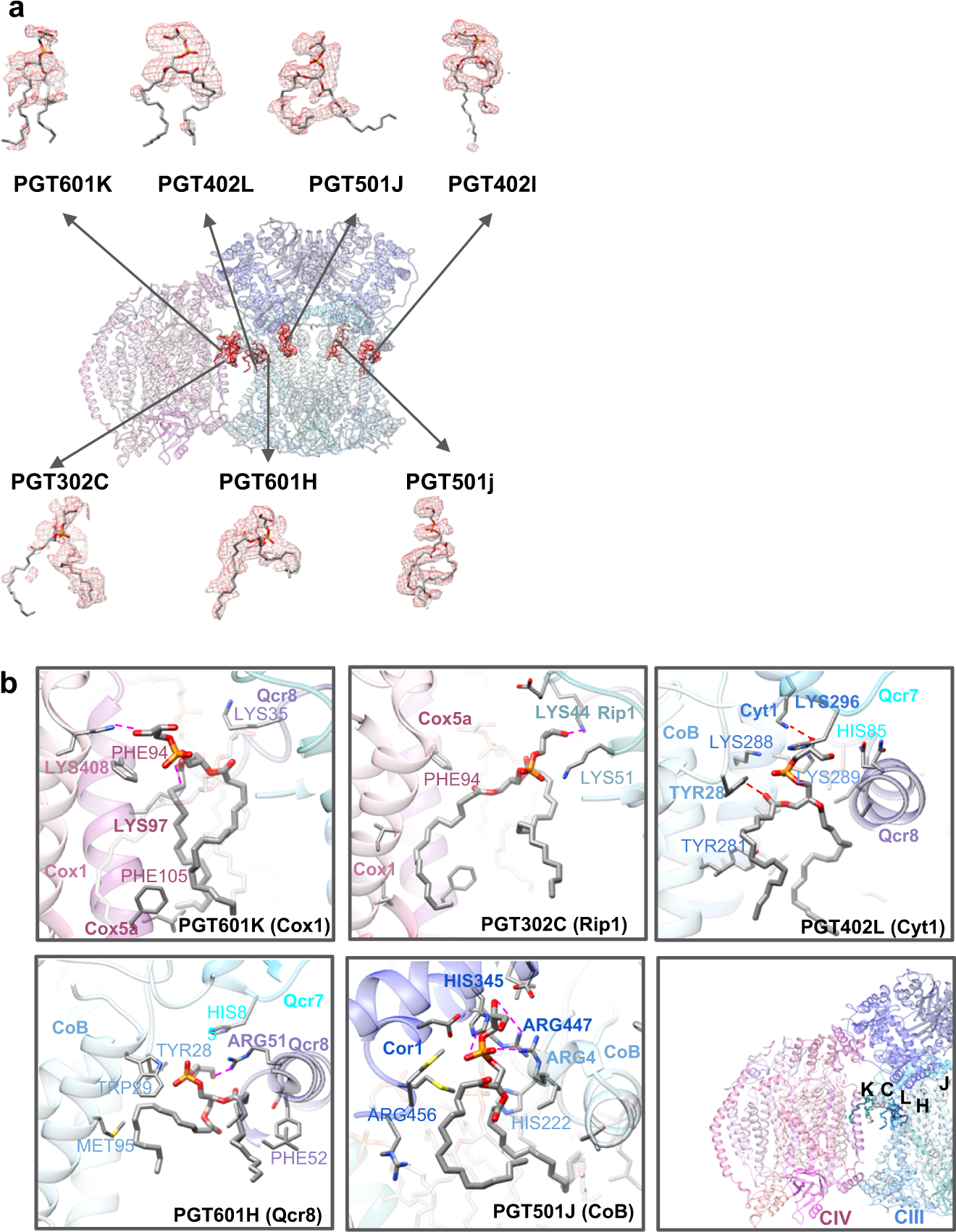

a The model is shown with isolated density for each of the PGT ligands identified in the density map. A zone equivalent to the resolution (3.3 Å) was used to isolate the density map corresponding to the model. b PGT potential interactions with neighboring subunits of the CRD1∆ SC. The five PGT ligands are shown on reference-side of the CRD1∆ SC. Side chains within 4 Å of the focused PGT are displayed, with specific interactions being highlighted with bold side chain labels and a magenta dashed line. PGT are labeled according to the subunit/chain names (see Supplementary Table 6).
