Fig. 6: Alternative transcript processing events in the Sitka spruce transcriptome.
From: Reference-free assembly of long-read transcriptome sequencing data with RNA-Bloom2

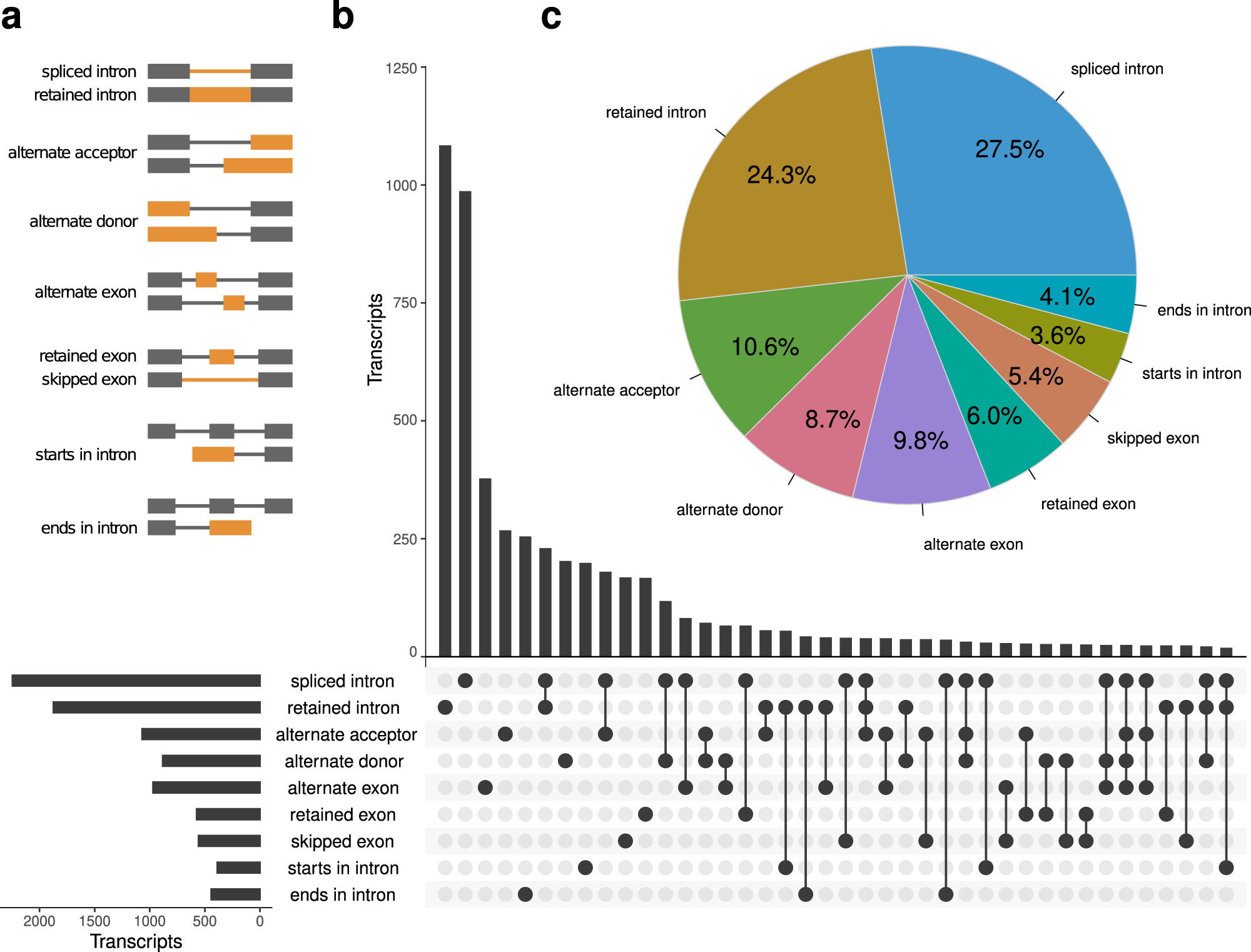

a Nine types of alternative transcript processing events are presented as they are defined in PASA and depicted by connected grey and orange rectangles. The exons, introns, or splice-junctions involved in each event type are highlighted in orange. b The vertical bar chart in the UpSet plot shows the number of transcripts containing single event types and co-occurring event types, which are indicated by single dots and connected dots in the matrix, respectively. The horizontal bar chart in the UpSet plot shows the total number of transcripts containing each event type. c Relative proportions of all event types in the PASA annotation. Source data are provided as a Source Data file.
