Fig. 4: Metabolic potential and dynamics of metagenomes assembled genomes (MAGs) across the chronosequences.
From: Trajectories of freshwater microbial genomics and greenhouse gas saturation upon glacial retreat

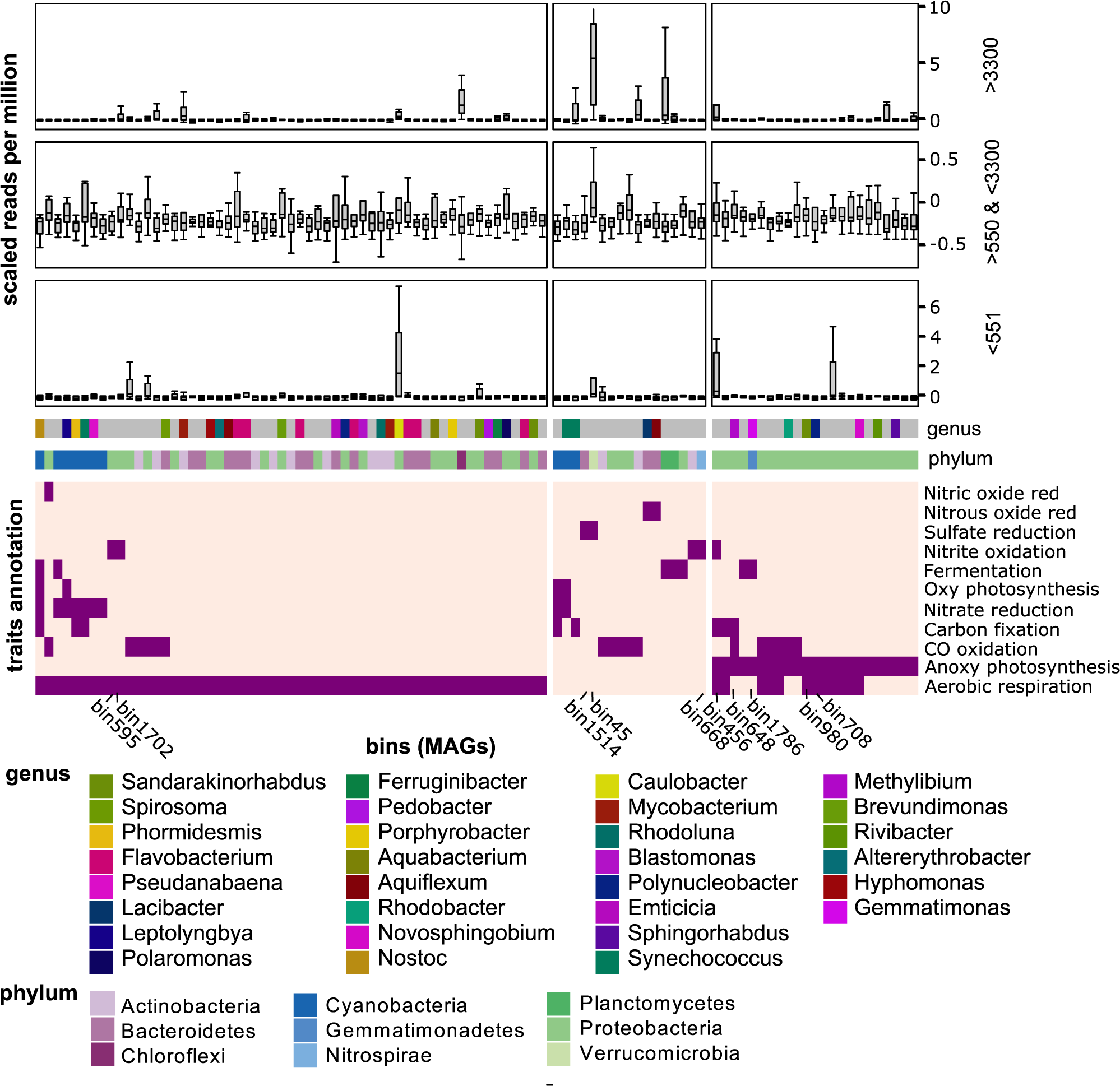

The taxonomic affiliation of the MAGs at the phylum and genus level, as well as MAGs mentioned in the text are given. In the third panel the read coverage of the MAGs across the chronosequences is depicted by separating the system into three categories depending on their distance to the closest glacier. The bottom and top of the box are the 25th and 75th percentile (the lower and upper quartiles, respectively), and the band near the middle of the box represents the median; the upper whisker extends to 1.5 * inter-quartile range (distance between the first and third quartiles).
