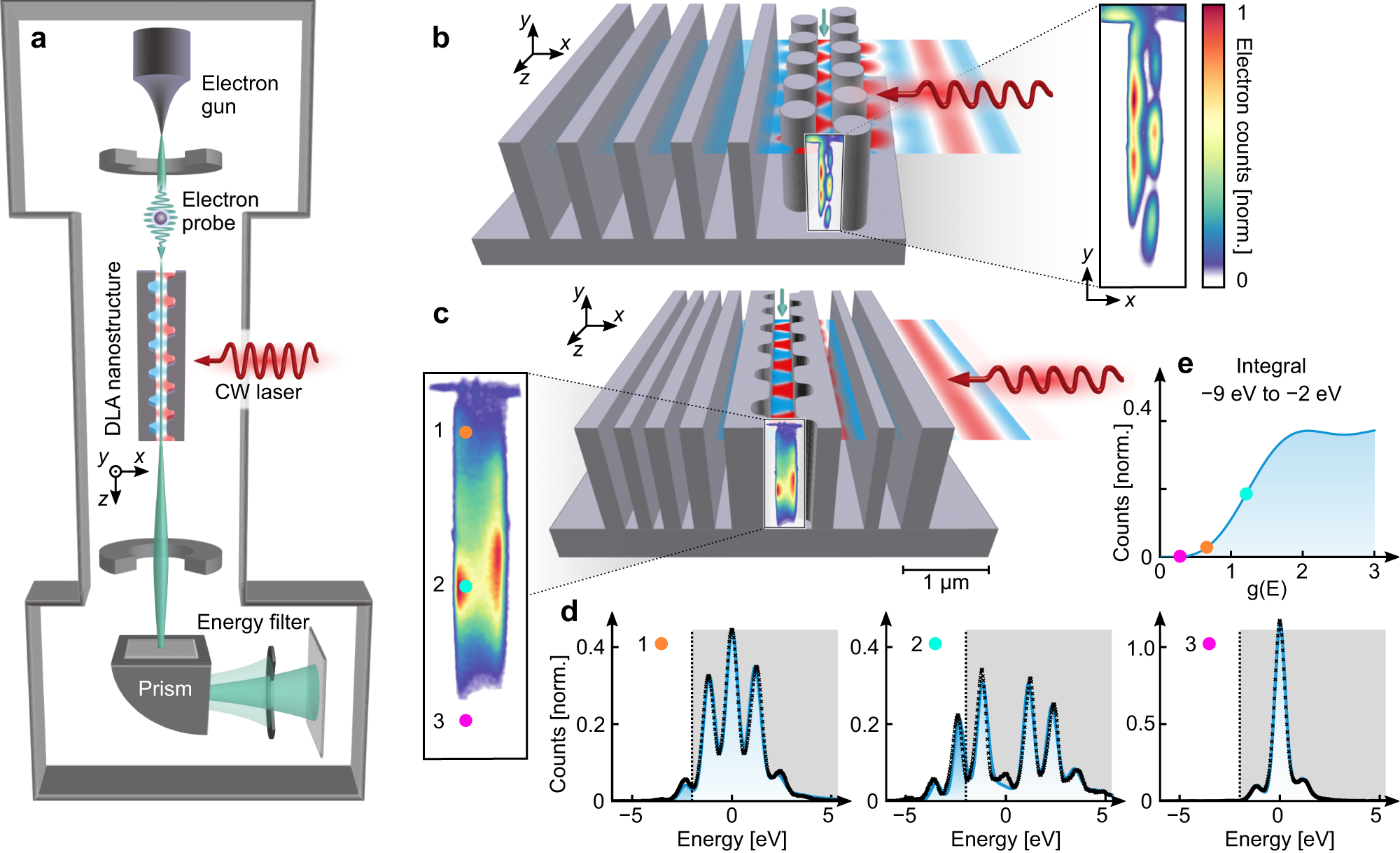

Fig. 1: Imaging the field distribution inside dielectric laser acceleration (DLA) structures.
a An illustration of the transmission electron microscope experimental setup. A LaB6 electron source operates in thermionic mode; a set of magnetic lenses and apertures are used to condition the electron beam such that it enters the DLA parallel to the channel at the required spot size; a 1064 nm CW laser modulates the energy of the electrons passing through the 20 μm long DLA structure; the electrons continue to a spectrometer, where they are energy-filtered such that only electrons that gained energy are imaged. b, c 3D model of the two structures used in this work: a dual-pillar structure with a distributed Bragg reflector and an inverse-designed resonant structure, respectively. A representative field distribution is overlaid at the end of the channel. d Measured (black crosses) and simulated (blue line) electron energy loss spectra (EELS) at representative locations inside the channel of the inverse-designed structure. These energy spectra measurements are obtained with an electron beam spot size of \(\sim\)70 nm, which is smaller than the channel widths of 210 and 280 nm in the two DLA structures. In contrast, the electron beam used to image the field distributions (insets of b and c) has a spot of \(\sim 3\,{{{{{\rm{\mu }}}}}}{{{{{\rm{m}}}}}}\), sufficiently large to cover the entire electron channel. The gray region in the spectra was filtered out to obtain the images of the acceleration field profile. Since the driving field amplitude is about three orders of magnitude smaller than that of fs pulses, the peak energy gain inside the CW-driven DLA structures reaches 5 eV (\(g=1.2\)), which in the classical picture corresponds to an acceleration gradient of about 0.2 MeV/m along the effective interaction length of 15 µm, given by the laser spot size. Compared to the much higher acceleration gradients of typically used fs laser pulses, the weak CW light field offers three advantages: (1) The weak field guarantees that the electron energy spectrum is not saturated, i.e., the zero-loss peak in the EELS is not fully depleted, which means that the electron counts monotonically increase with electric field strength. Stronger fields also cause transverse motion of the electron, which reduces the spatial resolution. (2) The CW operation enables working with continuous electron beams, which have much higher flux and better electron beam quality, thus providing better image quality. (3) The narrow bandwidth of CW light enables scanning over the wavelength with sub-nm resolution, which is much narrower than the bandwidth of fs pulses, and reveals the fine spectral response of the DLA. e Calculated transformation curve between measured EFTEM counts and the acceleration coefficient \(g\), which is proportional to \({E}_{z}(x,y)\). The values of \(g\) obtained from the fits in d are marked with colored dots.
