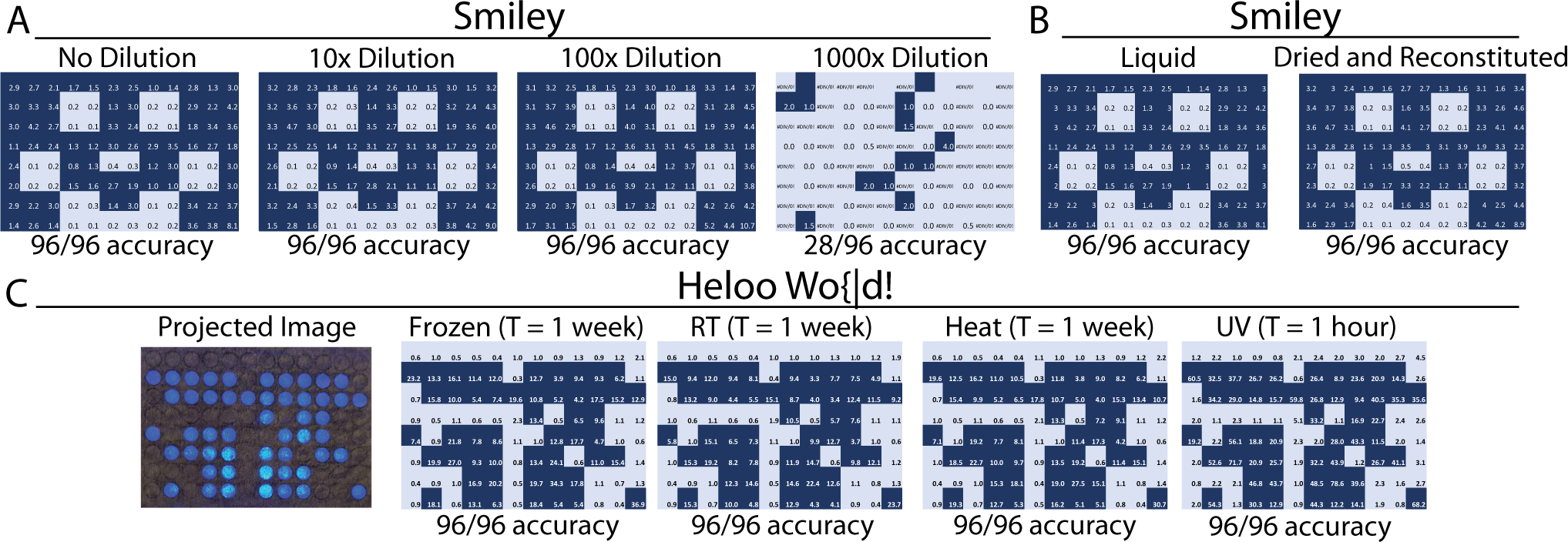

Fig. 3: Testing the boundaries of BacCam.
From: A biological camera that captures and stores images directly into DNA
A Dilution experiments demonstrating the theoretical maximum information capacity of BacCam. Images can be successfully retrieved up to a dilution of 100× from the original fully amplified pool, with 1000x dilution having significantly higher number of errors due to the low number of reads. B No loss in information for ‘Smiley’ stored in both liquid and dried form. C No loss of information in ‘Heloo wo{|d!’ stored in varying conditions for extended periods of time. Source data are provided as a Source Data file.
