Fig. 3: Vibrational spectroscopy analysis of LIG@Cu3HHTP2.

From: Semiconducting MOFs on ultraviolet laser-induced graphene with a hierarchical pore architecture for NO2 monitoring

Fig. 3

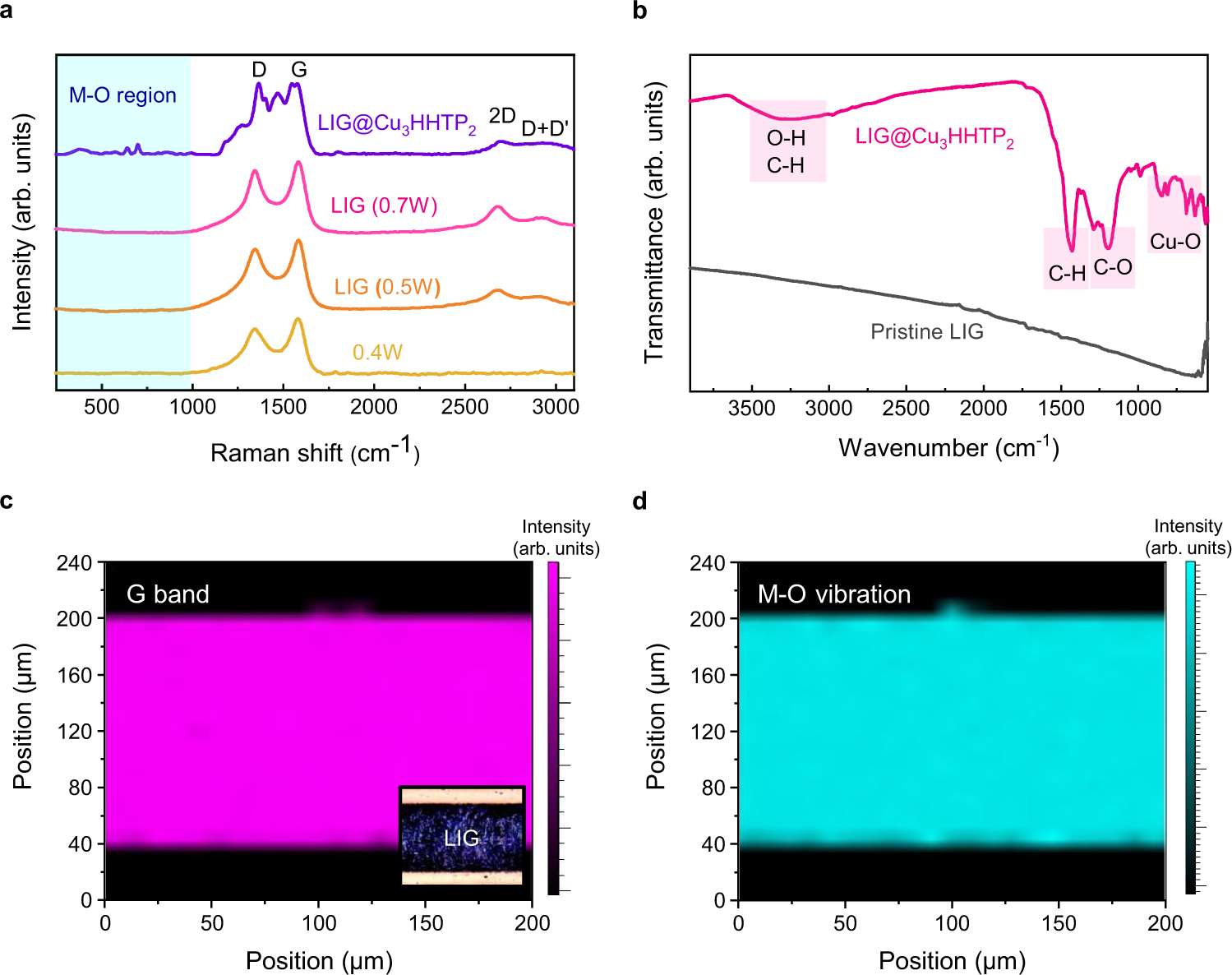

a High-resolution Raman spectra and b FT-IR spectra of LIG and LIG@Cu3HHTP2 showing their characteristic vibrational modes. c Raman mapping of graphitic G bands in a locally laser-irradiated region. The inset shows an optical microscopic image of the same position. d Raman mapping of the M-O vibration mode after the formation of Cu3HHTP2, displaying the selective growth of MOF on LIG. Source data are provided as a Source data file.
