Fig. 7: Modes in individual ASI sublattices under microwave excitation.
From: Nonlinear multi-magnon scattering in artificial spin ice

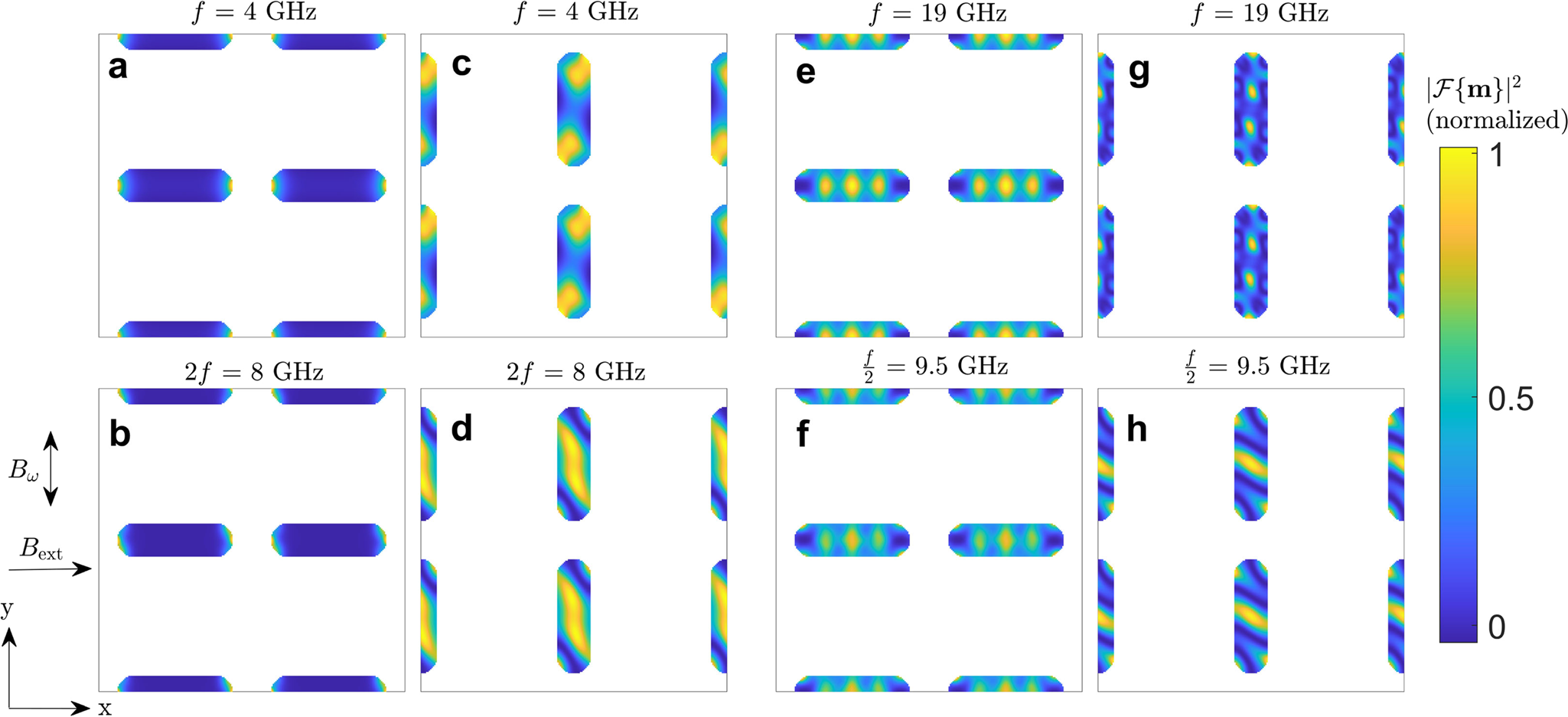

The directly excited and second harmonic modes for a microwave excitation of f = 4 GHz and Bω = 5 mT are shown, respectively, for the horizontal (a, b) and vertical (c, d) ASI sublattice. The directly excited and half harmonic modes for a microwave excitation of f = 19 GHz and Bω = 50 mT are shown, respectively, for the horizontal (e, f) and vertical (g, h) sublattice ASI.
