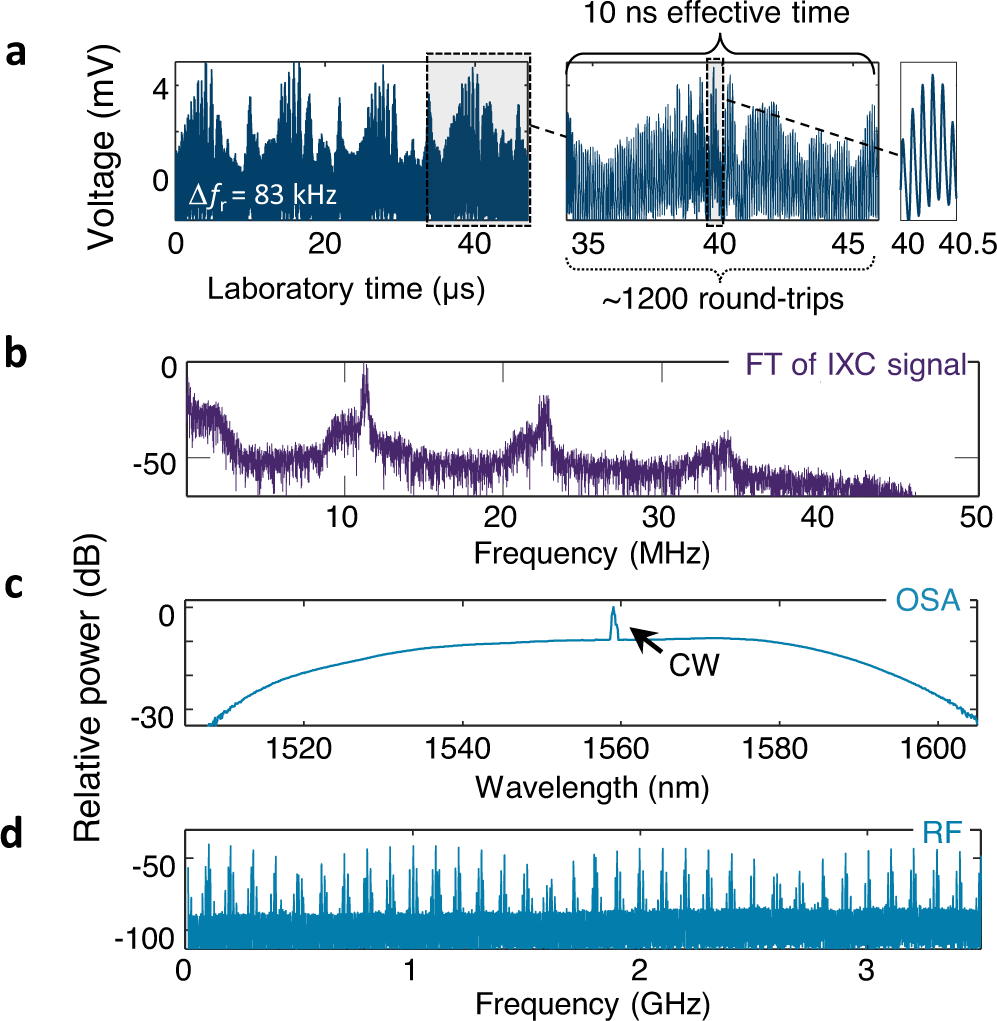

Fig. 5: Soliton-rain-like-event mediated by a strong CW component.

From: Two-photon imaging of soliton dynamics

Fig. 5

a IXC signal with Δfr = 83 kHz scan rate, which is ~123 × above the aliasing limit. Zoomed panels resolve individual pulses. b Power spectrum of the IXC signal via the Fourier transform (FT). c Optical spectrum with a continuous-wave (CW) component. d Strongly modulated RF spectrum, which reflects the complex dynamics of this laser state at extended timescales.
