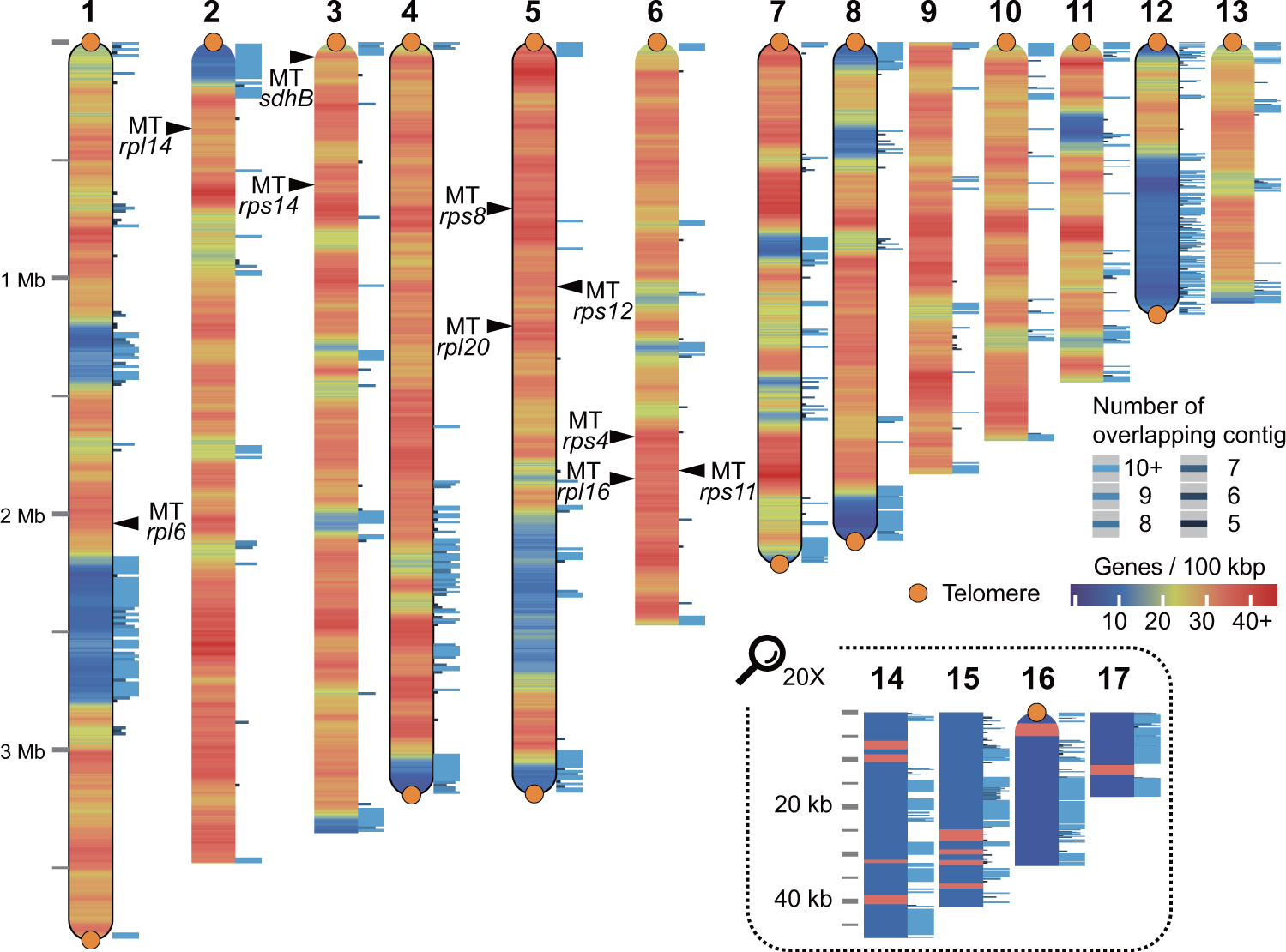

Fig. 6: Visualization of the pseudo-chromosomal assembly of R. marinus genome.
From: Origin of minicircular mitochondrial genomes in red algae
The assembled 17 contigs are arranged according to size. Four small contigs are 20x enlarged. EGT-derived genes and their location on contigs are indicated by arrowheads. The orange dot and rounded end of the contig represent telomere sequences. The black border line indicates the telomere-to-telomere assembly. Heat map shows the density of genes per 100 kb window. The stack bar next to the contig indicates number of overlapping contigs or coverage when contigs are aligned altogether. Source data are provided as a Source Data file.
