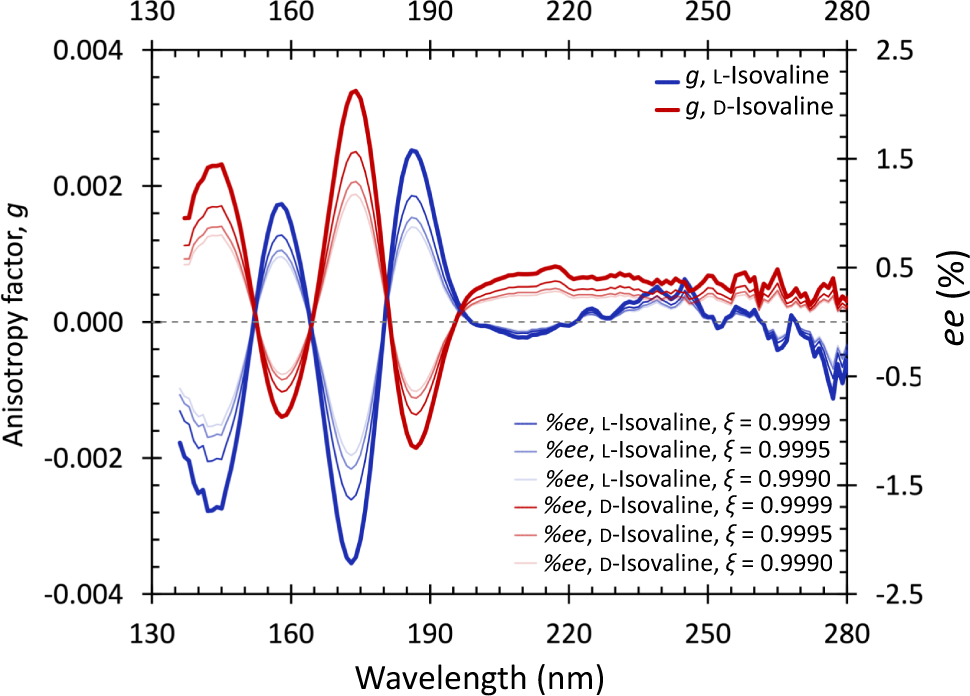

Fig. 2: Chiroptical solid-phase spectra of isovaline.
From: Uncovering the chiral bias of meteoritic isovaline through asymmetric photochemistry
The anisotropy spectra (thick lines) of the l- and d-enantiomers of isovaline allow for the prediction of enantiomeric excess (ee) inducible by asymmetric photolysis by circularly polarized light at the extent of reaction ξ (thin lines of decreasing intensity at 0.9999, 0.9995, and 0.9990) via numerical solution of the equation reported by Kagan et al.31. Source data are provided as a Source Data file.
