Fig. 6: Schematic diagram of genome mutation isolating mechanism promoted by glucokinase deficiency. | Nature Communications

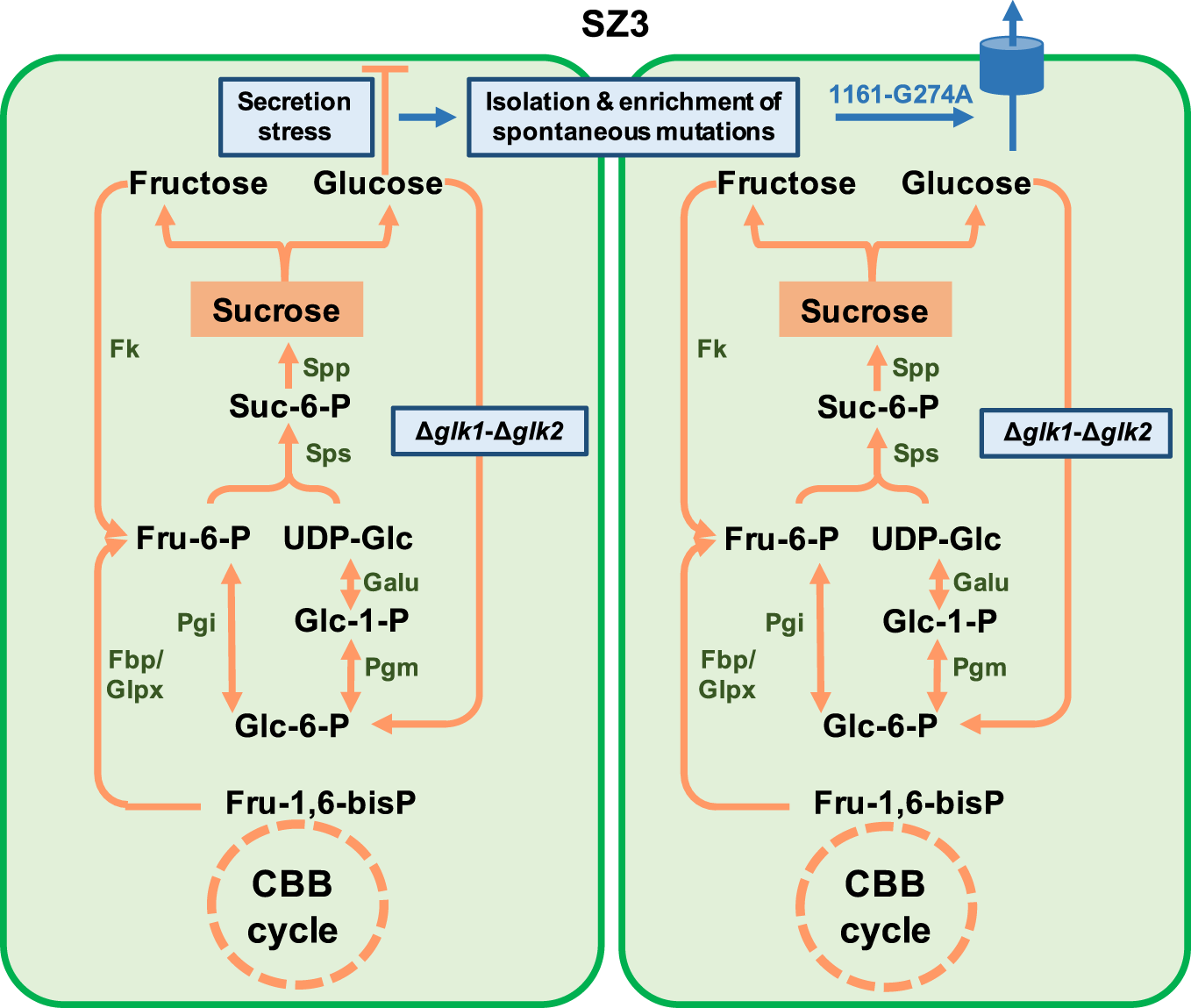

Fig. 6: Schematic diagram of genome mutation isolating mechanism promoted by glucokinase deficiency.

From: Unlocking the potentials of cyanobacterial photosynthesis for directly converting carbon dioxide into glucose

Fig. 6

CBB cycle Calvin–Benson–Bassham cycle, Fru-1,6-bisP fructose-1,6-bisphosphate, Fru-6-P fructose-6-phosphate, UDP-Glc UDP-glucose, Suc-6-P sucrose-6-phosphate, Glc-6-P glucose-6-phosphate, Glc-1-P glucose-1-phosphate, Sps sucrose-phosphate synthase, Spp sucrose-phosphate phosphatase, Fk fructokinase, 1161: synpcc7942_1161 gene, Pgi glucose-6-phosphate isomerase, Pgm phosphoglucomutase, Fbp fructose-1,6-bisphosphate I, Glpx fructose-1,6-bisphosphatase II/sedoheptulose-1,7-bisphosphatase, Galu UTP-glucose-1-phosphate uridylyltransferase.
