Fig. 5: MIR hyperspectral imaging and mapping of the onion (A. cepa) bulb leaves epidermal cells.
From: High-speed scanless entire bandwidth mid-infrared chemical imaging

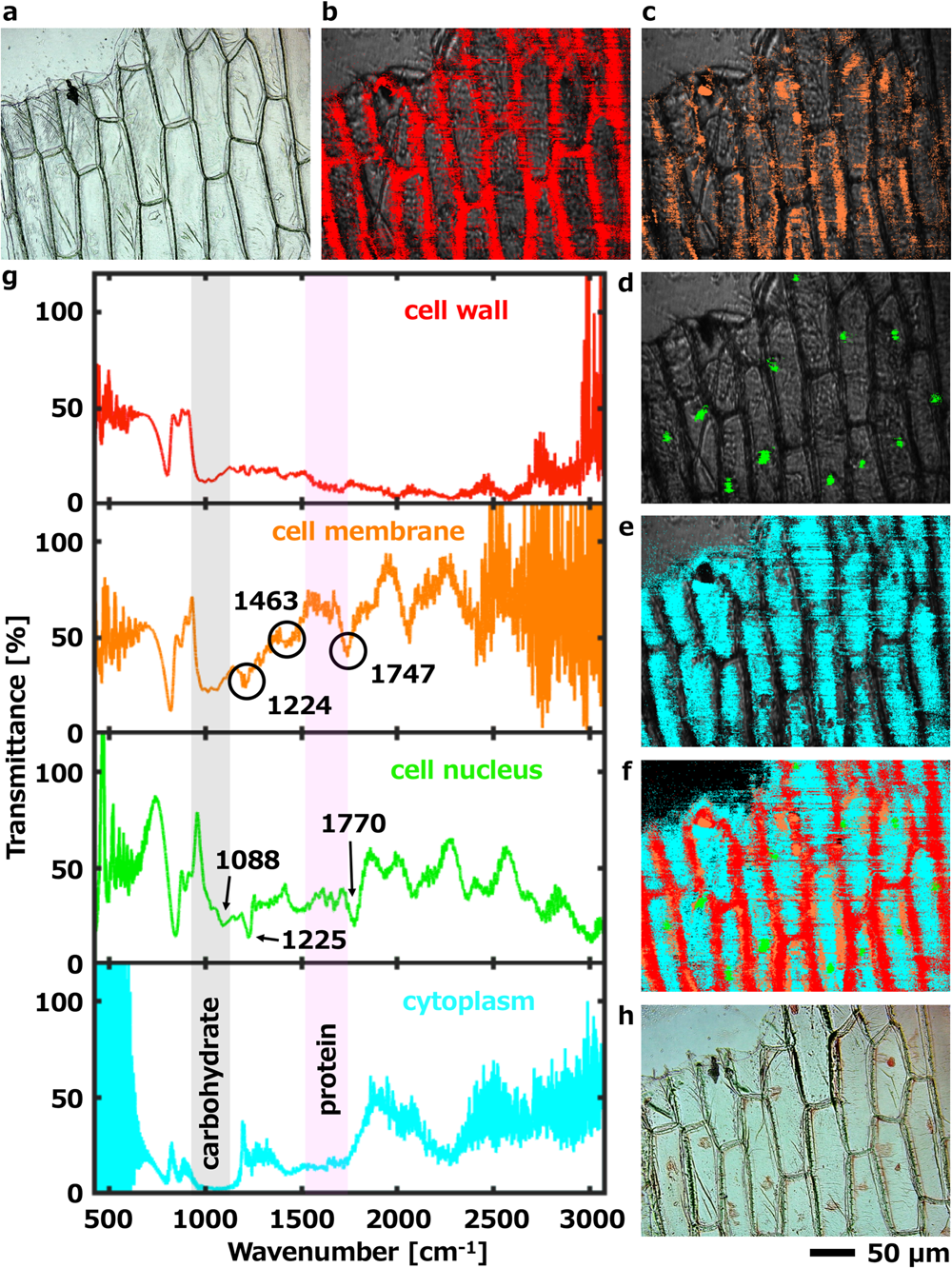

a Microscopy image illuminated by visible light. Mapped hyperspectral images of b cell wall, c cell membrane, d cell nucleus, and e cytoplasm and f their overlap were obtained by spectral analysis. The mapped color is a pseudo-color. g Infrared transmittance spectra of the cell wall, cell membrane, cell nucleus, and cytoplasm by extracted hyperspectral image. h Stained visible light microscopy image with acetocarmine solution which took after the hyperspectral image measurement. The scale bar applies to all images in Fig. 5.
