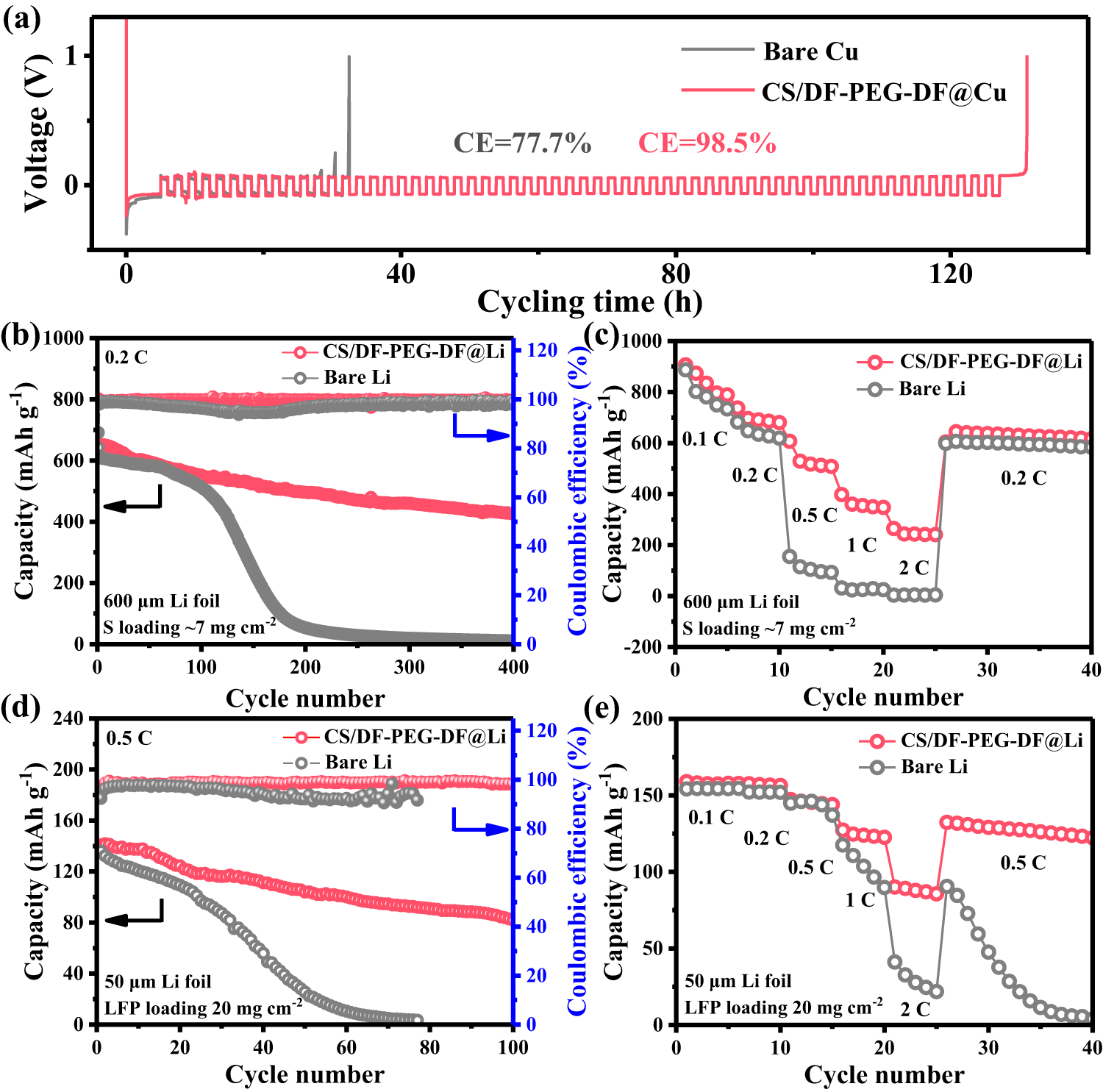

Fig. 5: Electrochemical performance of Li||Cu half cells and Li||S/Li||LFP full cells.
From: Dynamic gel as artificial interphase layer for ultrahigh-rate and large-capacity lithium metal anode
a CEs measured by Aurbach method of different electrodes in Li||Cu cells in ester electrolyte. b Cycle performances of Li||S and CS/DF-PEG-DF@Li||S cells at 0.2 C. c Rate performances at various C-rates of the Li||S and CS/DF-PEG-DF@Li||S cells. d Cycle performances of Li||LFP and CS/DF-PEG-DF@Li||LFP cells at 0.5 C. e Rate performances at various C-rates of the Li||LFP and CS/DF-PEG-DF@Li||LFP cells.
