Fig. 2: The results of TSSF patterning, simulation and applicability of multi-material systems.

From: Laser maskless fast patterning for multitype microsupercapacitors

Fig. 2

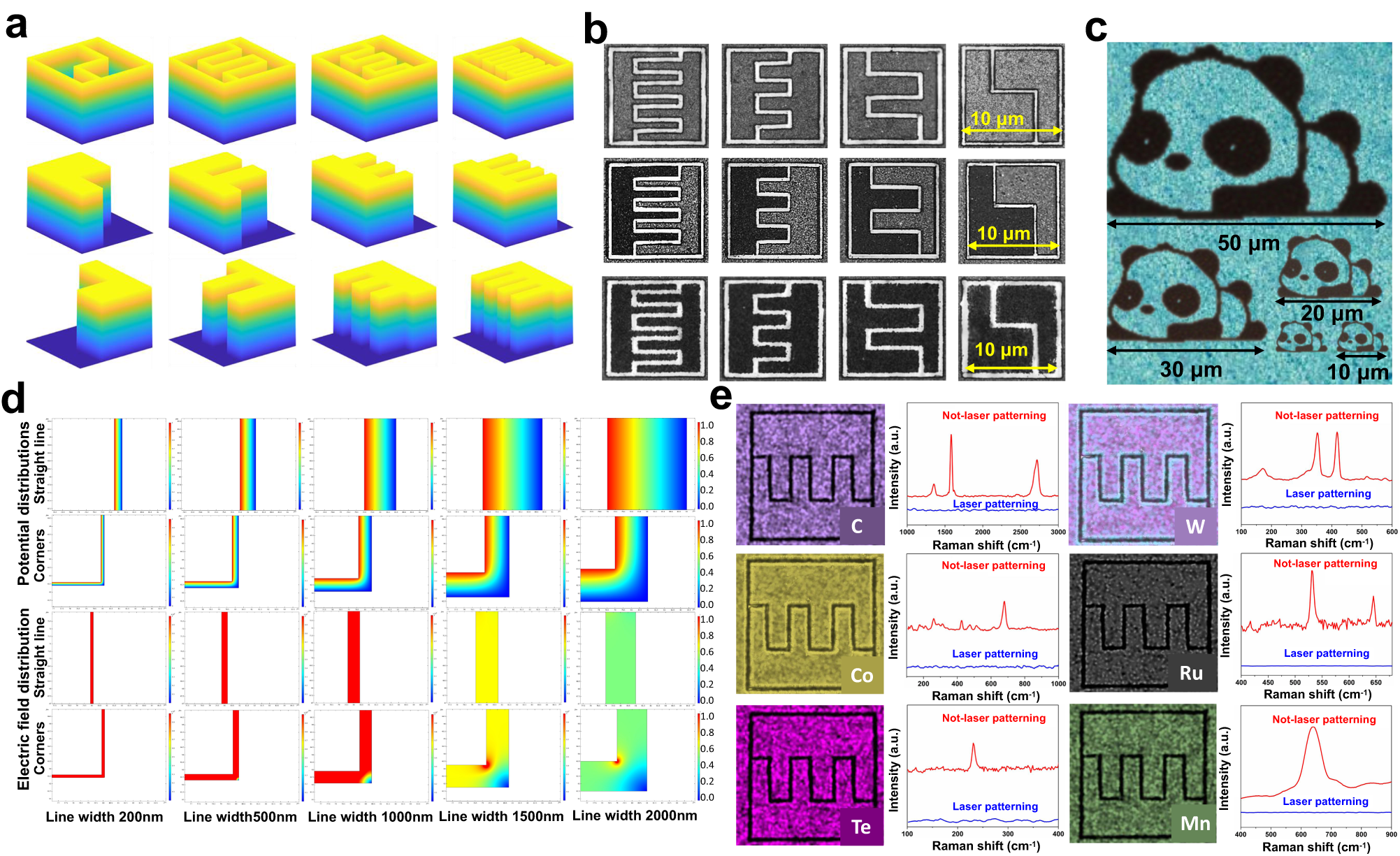

a Light field patterns of differing shapes. b Optical micrographs of various types of MSCs obtained through processing (scale bars: 10 μm). c Scanning electron micrographs of MSCs of different sizes. d The simulated potential and electric field distributions of micro-supercapacitors with different line widths at straight lines and corners by the COMSOL soft. e Scanning electron microscopy mapping of patterns on different materials and the corresponding Raman spectra.
