Fig. 4: Thin film and thin crystal comparison.

From: Exciton dissociation in 2D layered metal-halide perovskites

Fig. 4: Thin film and thin crystal comparison.The alternative text for this image may have been generated using AI.

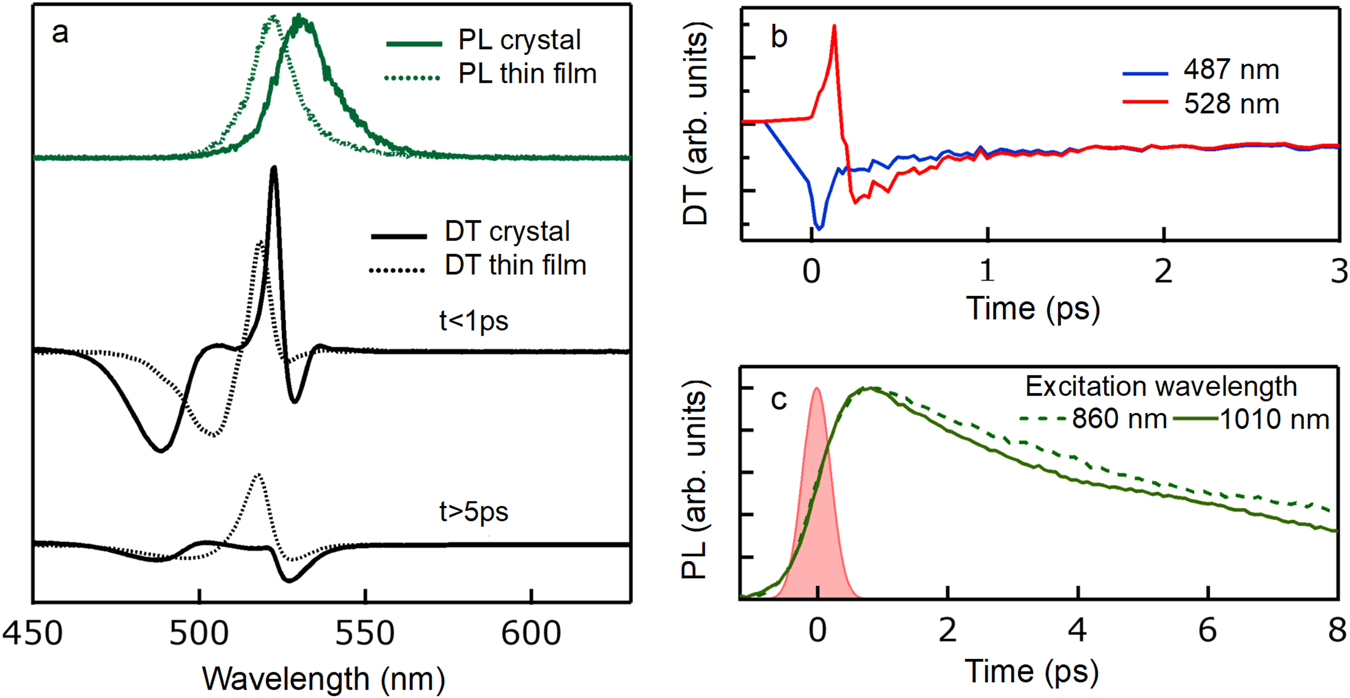

a On top: photoluminescence spectra for crystal and thin film samples (green solid and dashed lines, respectively), with 830 nm excitation for crystal (non-resonant two-photon) and 430 nm for thin film. Center and bottom: DT spectra under resonant two-photon excitation (1030 nm) from the single crystal (solid black line) and thin film (dashed black line) PEA2PbI4 samples right after laser excitation (t < 1 ps, center), and at longer delays (t > 5 ps, bottom) when only broadening is left. PL and DT spectra are vertically offset for clarity. Due to the crystal being much thicker than the thin film, the DT signal is more intense, leading to an improved signal-to-noise ratio. b Amplitude of the DT signal from the crystal sample in the short and long wavelength lobes (blue and red, respectively) as a function of time in the first 3 ps time window after pulsed excitation with a fluence of 6 mJ/cm2/pulse. c Ultrafast PL measured with a Kerr medium optical gate setup under two-photon excitation, both resonant (1010 nm) and non-resonant (860 nm) with the exciton transition, reported as solid and dashed green lines, respectively. The pink shaded area represents the instrument response function, highlighting that the PL rise time is significantly longer than the time resolution of the setup.
