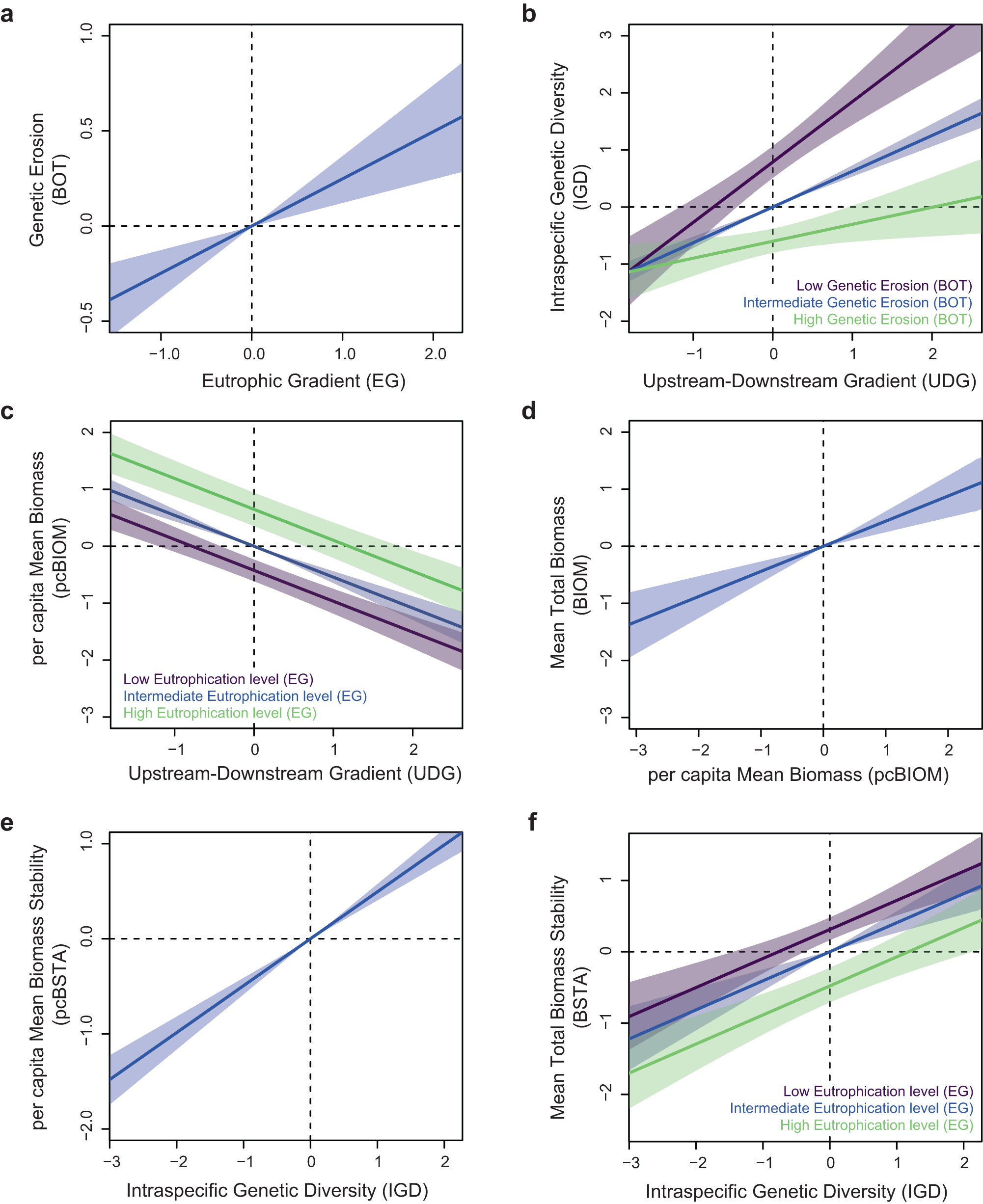

Fig. 3: Predicted values of all endogenous variables given the retained links shown in Fig. 1.
From: Genetic erosion reduces biomass temporal stability in wild fish populations
Data are presented as predicted values (thick lines) +/- SD (colored envelops). a: predicted values for Genetic Erosion (bottleneck probability BOT); b: predicted values for Intraspecific Genetic diversity (IGD); c: predicted values for per capita Mean Biomass (pcBIOM); d: predicted values for mean Total Biomass (BIOM); e: predicted values for per capita Mean Biomass Stability (pcBSTA); f: predicted values for Mean Total Biomass Stability (BSTA). When two predictors were considered (panels b, c and f), predictions were performed using the full range of the first predictor (x-axis) and the minimal (purple), mean (blue) and maximal (green) values of the second predictor. Source data are provided as a Source Data file.
