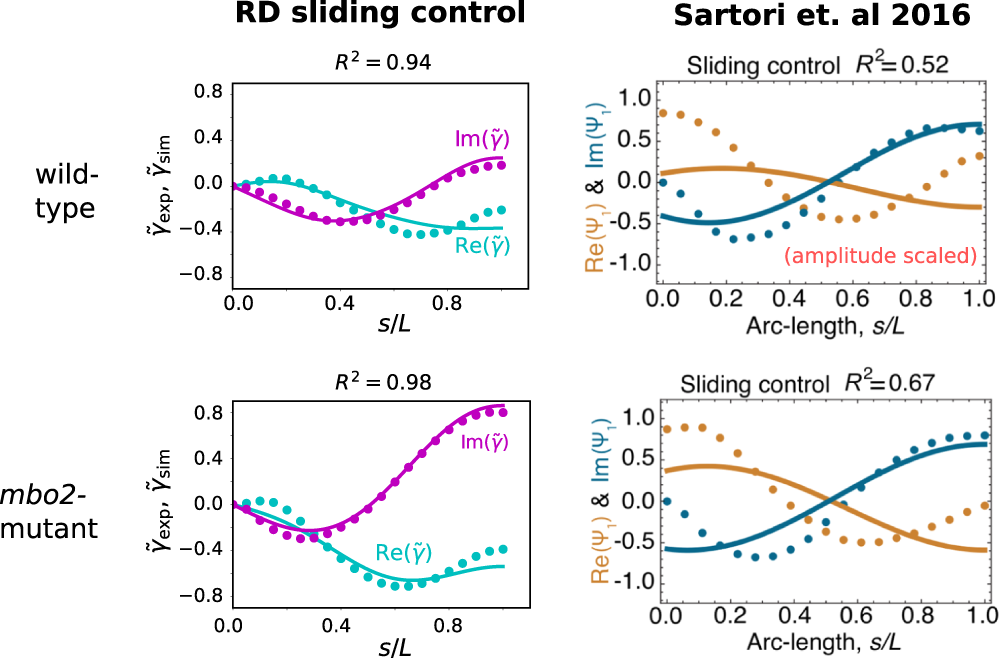

Fig. 7: Comparison between the fitting accuracy of the geometrically exact RD sliding-controlled model (left column) and linearised elastohydrodynamic sliding-control model17 (right column).
From: The reaction-diffusion basis of animated patterns in eukaryotic flagella
Real/imaginary parts of the fundamental Fourier mode of typical theoretical (solid lines) and experimental (dotted lines) beats of wild-type and mbo2-mutant C. reinhardtii fitted with: (i) the RD model with tug-of-war sliding-controlled motor kinetics and geometrical nonlinearities retained (left column), and (ii) a complex sliding-controlled linear response coefficient χ and free amplitude, adapted from ref. 17 (CC BY 4.0, right column).
