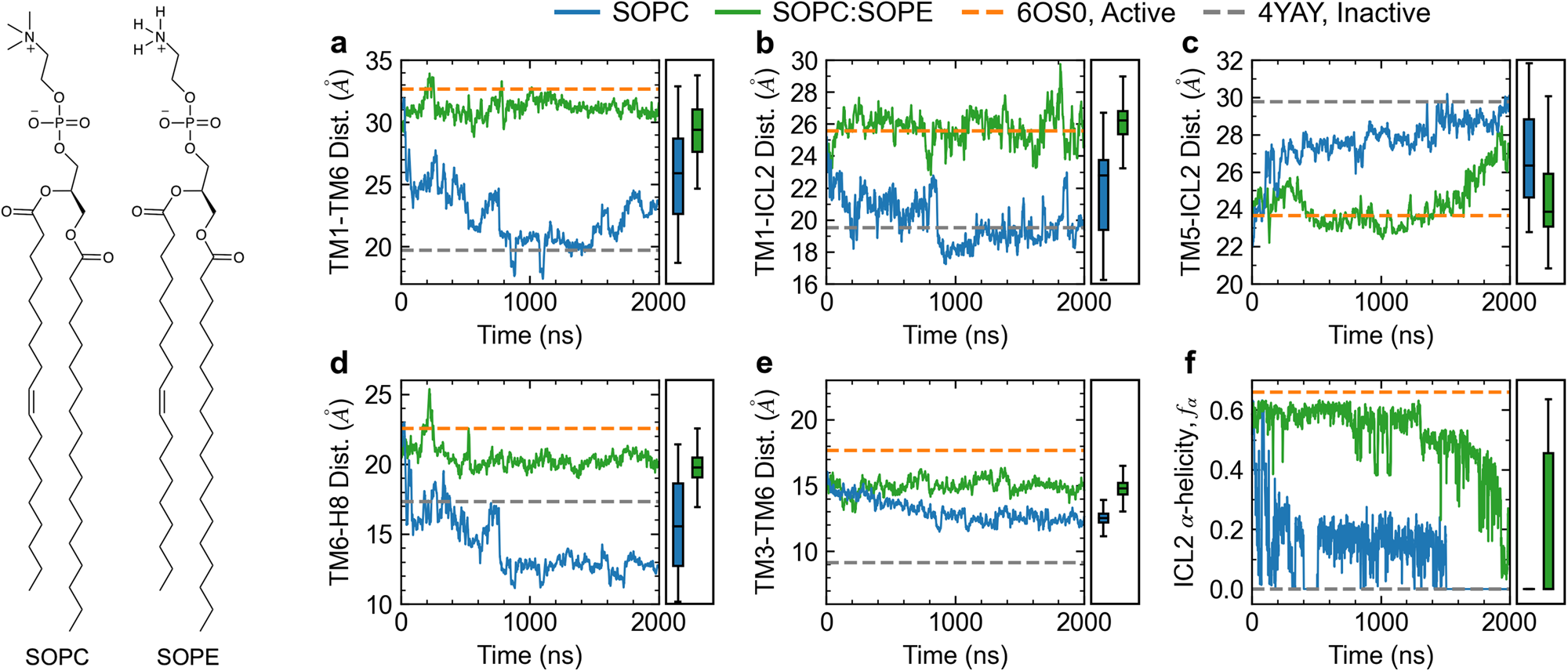

Fig. 4: Time evolution of apo AT1 receptor simulations in SOPC and SOPC:SOPE (1:1) membranes.
From: Membrane mediated mechanical stimuli produces distinct active-like states in the AT1 receptor
Key structural features including the distances between TM1-TM6 (a), TM1-ICL2 (b), TM5-ICL2 (c), TM6-H8 (d), and TM3-TM6 (e), as well as the α-helicity of ICL2 (f) indicate that the active state is stable in the SOPC:SOPE (green lines) membrane, while the pure SOPC membrane promotes inactivation. Rectangular boxes on the right of each panel show box and whiskers plots including median, quartiles, and extrema of the combined data from the two replicas of each system over the last 500 ns (n = 2 independent simulations, 200,000 time points analyzed). Dashed gray and orange lines show values from crystal structures of the inactive receptor bound to a selective antagonist (4YAY) and active receptor bound to AngII (6OS0), respectively. Inset on the left shows the structure of SOPC and SOPE lipids.
