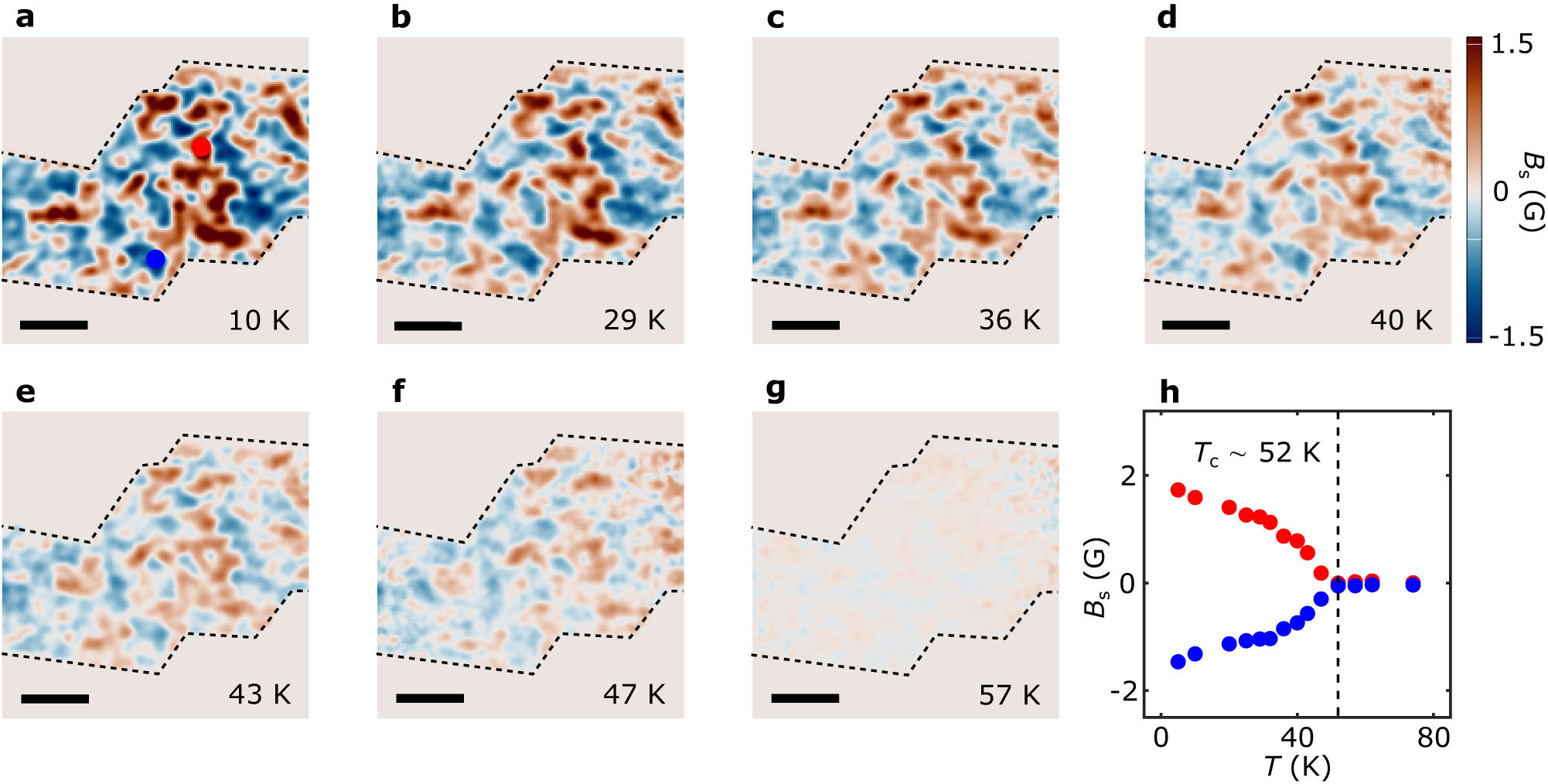

Fig. 3: Temperature dependence of twisted magnetism.
From: Revealing intrinsic domains and fluctuations of moiré magnetism by a wide-field quantum microscope
a–g Stray field patterns of the 0.3° tDT CrI3 sample measured at an out-of-plane field Bext = 71 G and temperatures of 10 K (a), 29 K (b), 36 K (c), 40 K (d), 43 K (e), 47 K (f), and 57 K (g), respectively. The black dashed lines outline the boundary of the 0.3° tDT CrI3, and the scale bar is 3 μm. h Temperature dependence of the emanating stray field measured at two local magnetic domain sites with opposite polarity, from which the Curie temperature of the 0.3° tDT CrI3 is estimated to be 52 K (black dashed lines).
