Fig. 3: Structural properties of the amorphous form of AZD4625.
From: Atomic-level structure determination of amorphous molecular solids by NMR

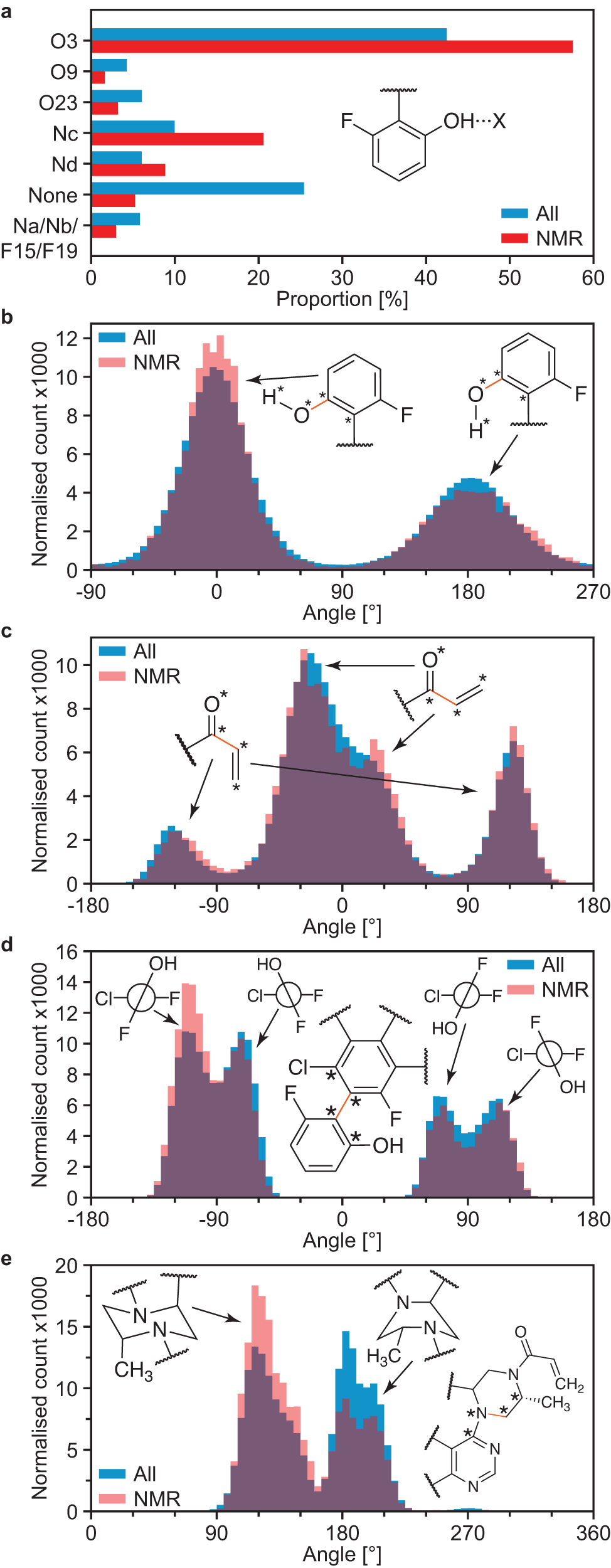

a Proportions of different hydrogen bond acceptors bonded to the OH group of AZD4625 in all local molecular environments (blue) and in the NMR ensemble (red). Histogram of dihedral angles for the b OH group, c enone, d aromatic planes, and e aliphatic ring in all molecules (blue) and in the NMR ensemble (red). In b–e the rotatable bond associated with the dihedral angle is drawn in orange. Stars indicate the atoms used for the computation of the dihedral angle.
