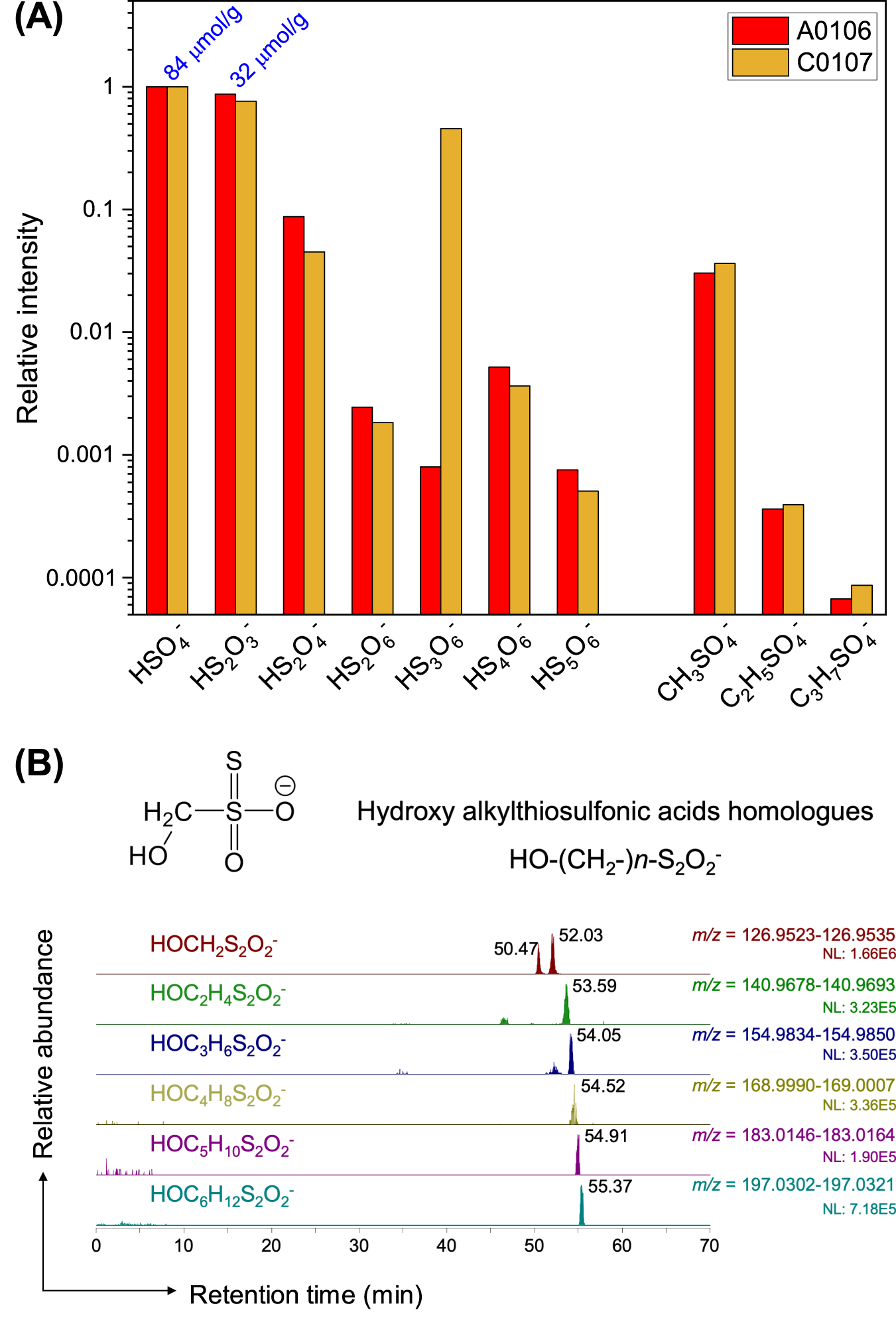

Fig. 3: Anionic soluble sulfur-bearing species.
From: Chemical evolution of primordial salts and organic sulfur molecules in the asteroid 162173 Ryugu
A Relative intensity of major anion species detected by ion chromatography / Orbitrap mass spectrometry (IC/Orbitrap MS) of the water extracts of A0106 and C0107 (#5, Supplementary Fig. 1B). The intensities are normalized to sulfuric acids and shown on a logarithmic scale. Average sulfate and thiosulfate concentrations of A0106 and C0107 quantified by conductivity detection of ion chromatography analysis are shown above the bars (blue). B Representative nano-flow LC/Orbitrap MS chromatograms of water-extractable (#5) organic sulfur homologs. Here we show hydroxy alkylthiosulfonic acid HO–(CH2-)n–S2O2− obtained from Ryugu sample A0106. Other organosulfur compounds are shown in Supplementary Figs. 4 and 8. Data are provided as a Source Data file.
