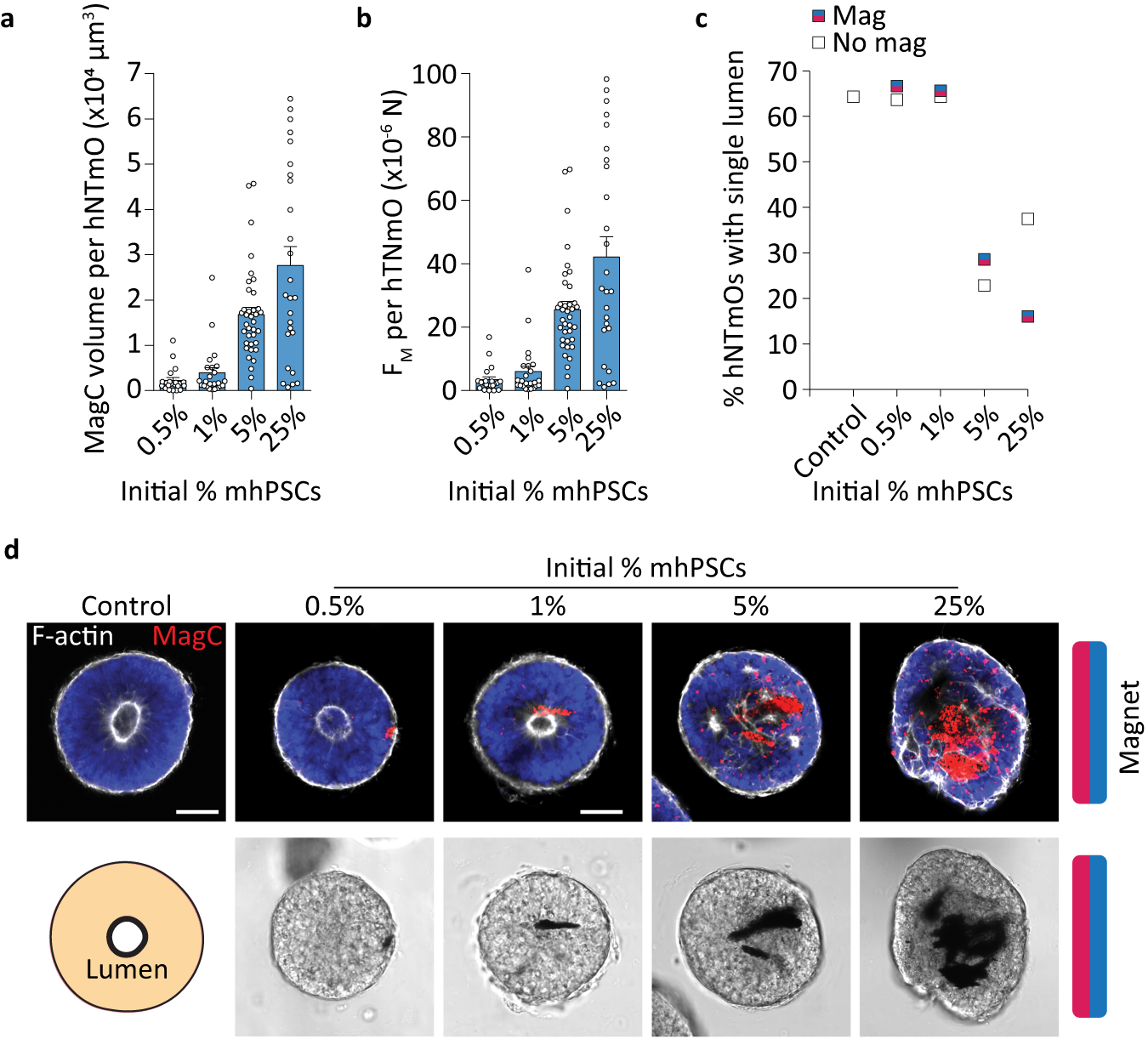

Fig. 2: Magnetoid force estimation and cytoskeletal evaluation.
From: Targeted mechanical stimulation via magnetic nanoparticles guides in vitro tissue development
a Estimation of MagC volumes in day 11 hNTmOs at various initial mhPSC proportions (n = 3 independent experiments for 21 (0.5%), 24 (1%), 37 (5%), 26 (25%) hNTmOs). b Estimation of force generation in day 11 hNTmOs at various initial mhPSC proportions (from a). c Average lumen formation in day 11 hNTmOs at various conditions and with various initial mhPSC proportions (n = 2 independent experiments for >30 magnetoid per condition). d Representative images showing F-actin expressions in day 11 hNTmOs at various initial mhPSC proportions (n = 3 independent experiments). Scalebar 50 μm. Error bars are SEM. Source data are provided as a Source Data file.
