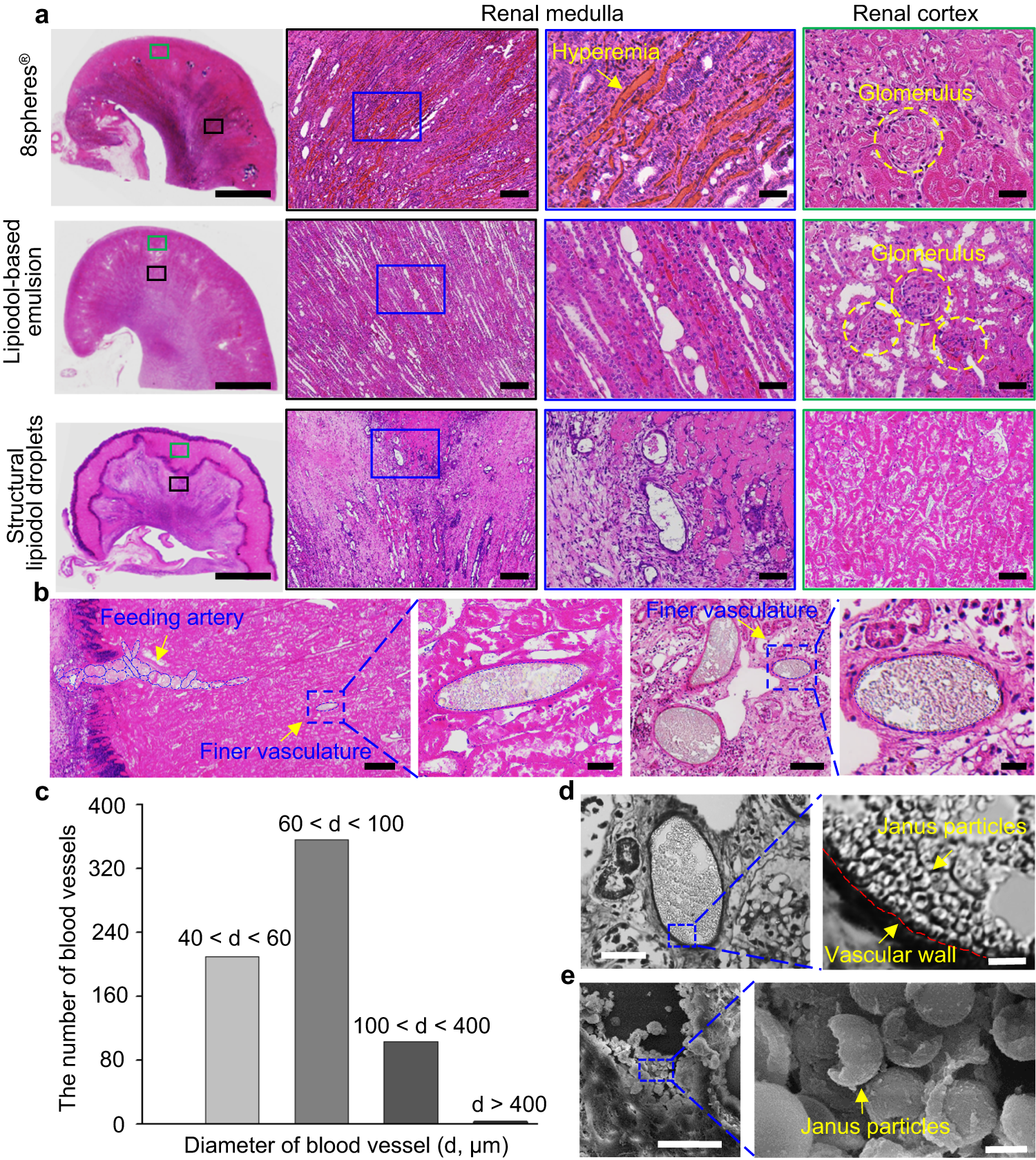

Fig. 5: Pathological analysis of the embolization effectiveness of Janus particle-engineered structural lipiodol droplets, lipiodol-based emulsion, and 8spheres® beads after 14 days post-embolization.
