Fig. 4: Stable interface in the layered structure of LQS-AIB.

From: Construction of double reaction zones for long-life quasi-solid aluminum-ion batteries by realizing maximum electron transfer

Fig. 4: Stable interface in the layered structure of LQS-AIB.The alternative text for this image may have been generated using AI.

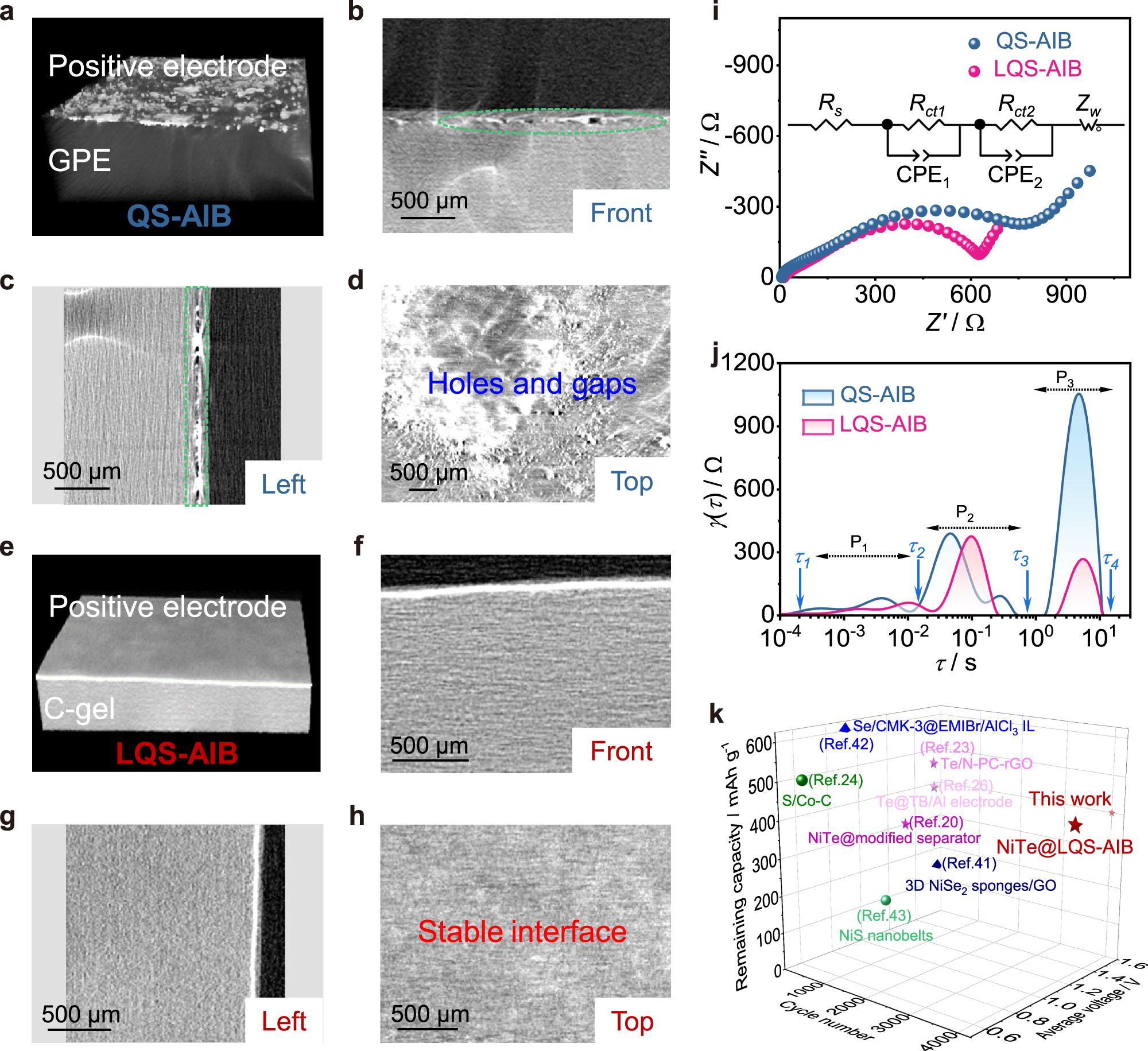

Ex-situ X-ray nano-computed tomography (CT) images of (a) reconstructed architecture of Zone 1 in QS-AIB and (b) front, (c) left and (d) top view of the corresponding profiles. e Reconstructed architecture of the DRZs in LQS-AIB and (f) front, (g) left and (h) top view of the corresponding profiles of DRZs. i Comparison of Nyquist plots for the LQS- and QS-AIBs. Inset shows the equivalent circuit model for the battery systems. j DRT results of LQS- and QS-AIBs. k Comparison of the performance of our LQS-AIB with the other Al batteries based on conversion-type positive electrode materials.
