Fig. 4: PCs for speleothem and lake records in Southeast Asia.

From: Deciphering local and regional hydroclimate resolves contradicting evidence on the Asian monsoon evolution

Fig. 4: PCs for speleothem and lake records in Southeast Asia.The alternative text for this image may have been generated using AI.

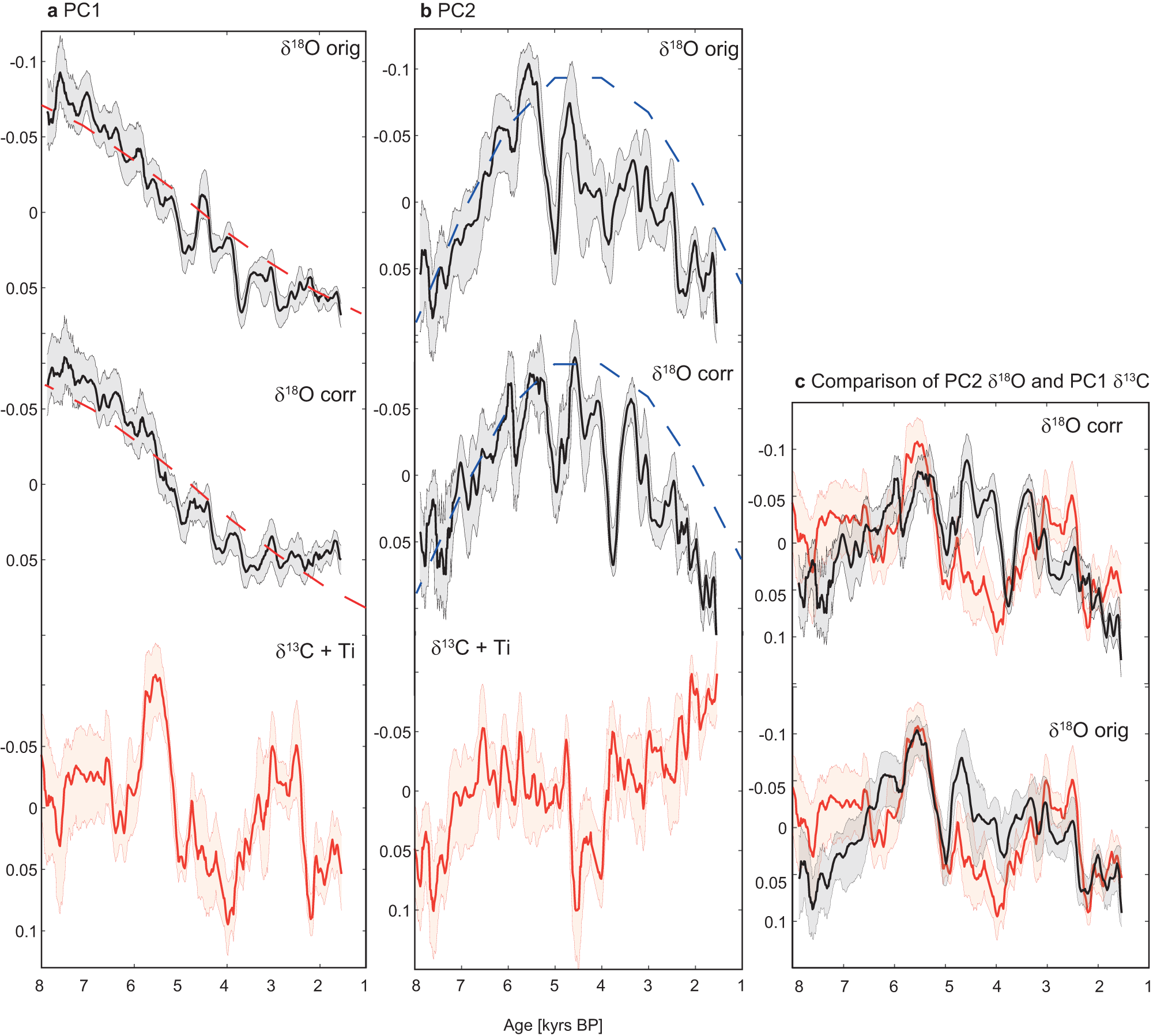

PC1 (a) and PC2 (b) timeseries of the original, corrected δ18O and δ13C + Ti records. Black lines show oxygen and orange lines show carbon isotope ratios, with age uncertainties in shading. The uncorrected PC2 (δ18O) shares similarities with PC1 of the δ13C + Ti records (c). Dashed lines show summer (red) and autumn (blue) insolation.
