Fig. 3: Performance of the smart hybrid membranes in descaling and their gas permeability. | Nature Communications

Fig. 3: Performance of the smart hybrid membranes in descaling and their gas permeability.

From: Smart dynamic hybrid membranes with self-cleaning capability

Fig. 3

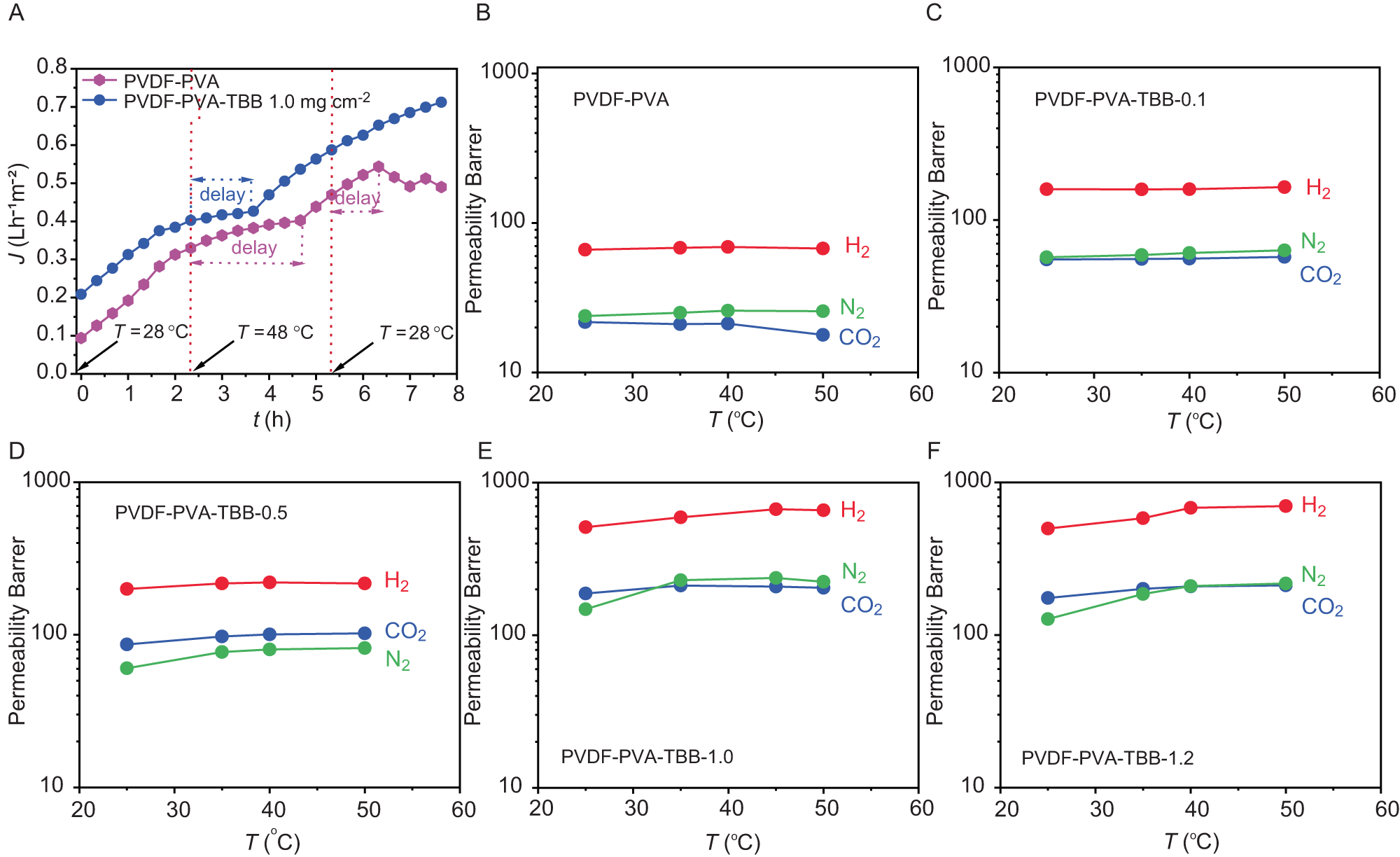

A Simultaneous transmembrane flux for a reference (unloaded) membrane and the 1.0 mg cm−2 TBB-loaded membrane with solution containing model foulants (BSA, HA and SA), when changing the temperature of the system across the phase transition temperature. B‒F Permeability of CO2, H2, and N2 as a function of temperature for membranes at different loading of thermoresponsive particles. The loading is given on each panel, and the sample labels refer to Fig. 2A.
