Fig. 2: Self-assembly mechanism of cellobiose/SPc/dsRNA complex.

From: High-efficiency green management of potato late blight by a self-assembled multicomponent nano-bioprotectant

Fig. 2

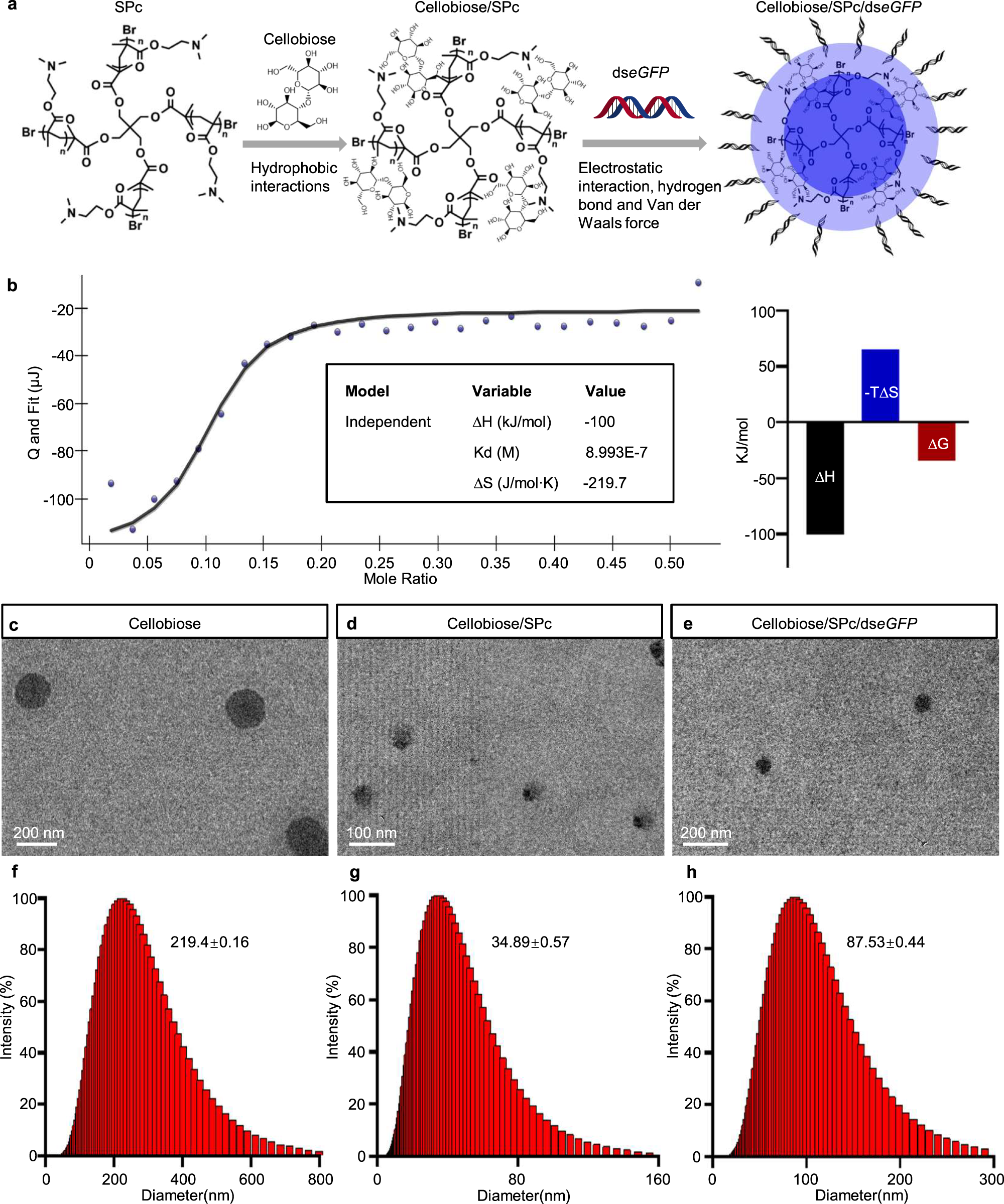

a Schematic illustration of self-assembled cellobiose/SPc/dsRNA complex. b, b-1 ITC titration of dseGFP solution (0.67 ×10−6 mol/L) into cellobiose/complex (1.4 × 10−6 mol/L). c–h TEM images (c–e) and particle size distributions (f–h) of cellobiose, cellobiose/SPc complex and cellobiose/SPc/dseGFP complex. The number indicates the average particle size. Data are from three biological replicates. Source data are provided as a Source Data file.
