Fig. 3: Gene fusion discoveries.
From: TAGET: a toolkit for analyzing full-length transcripts from long-read sequencing

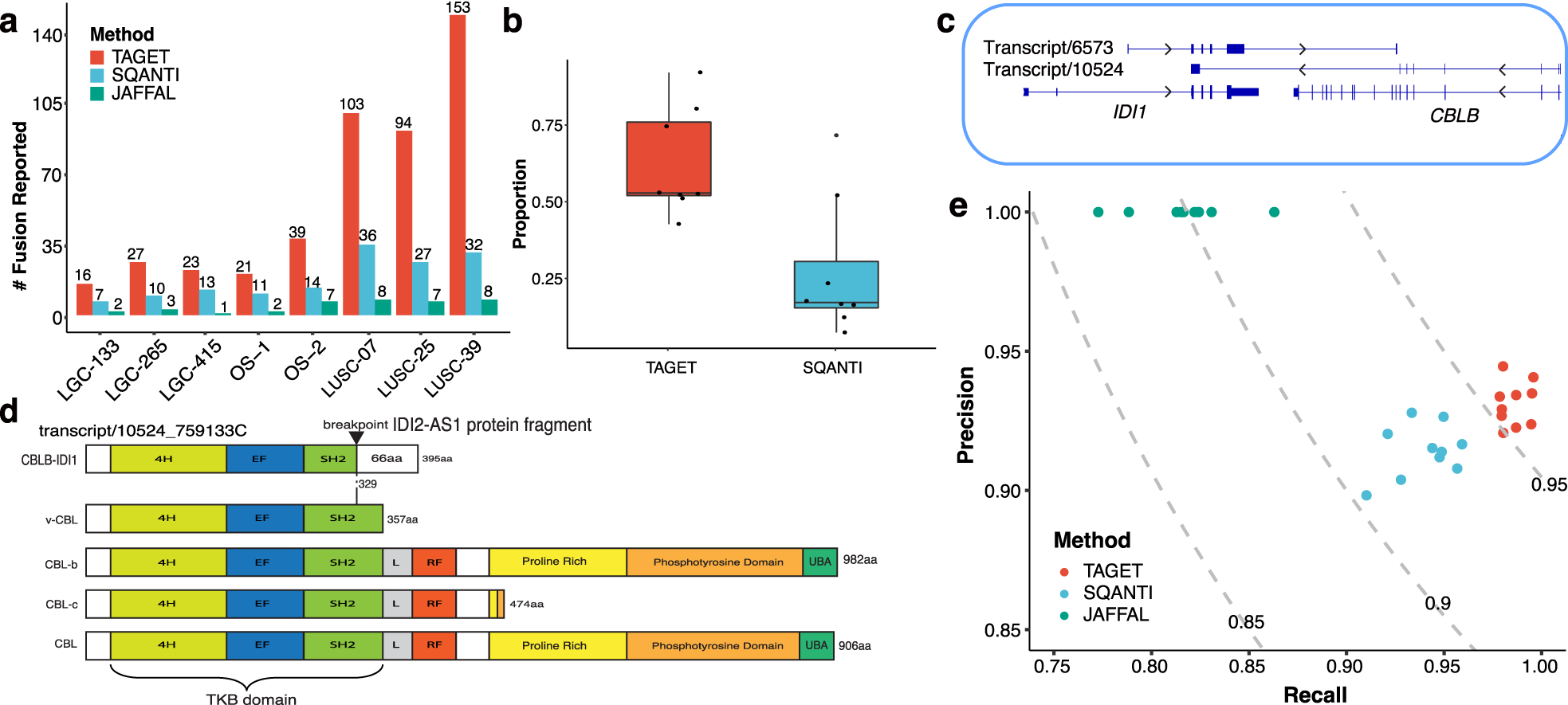

a The numbers of reported somatic fusions by TAGET, SQANTI, and JAFFAL. b Proportions of gene fusions reported by TAGET and SQANTI that have at least two supporting short reads (n = 8 samples). The center line in the boxplot is the median, bounds of boxes are the interquartile of the data, whiskers represent minima/maxima excluding outliers and dots represents outliers of beyond 1.5*Interquartile Range (IQR) from either end of the box. c The CBLB-IDI1 gene fusion. d The structure of the fusion CBLB-IDI1 and the CLB proteins. e The gene fusion simulation results given by TAGET, SQANTI, and JAFFAL. The dashed lines are the contour lines with constant F-scores (F-scores are marked on the lines).
