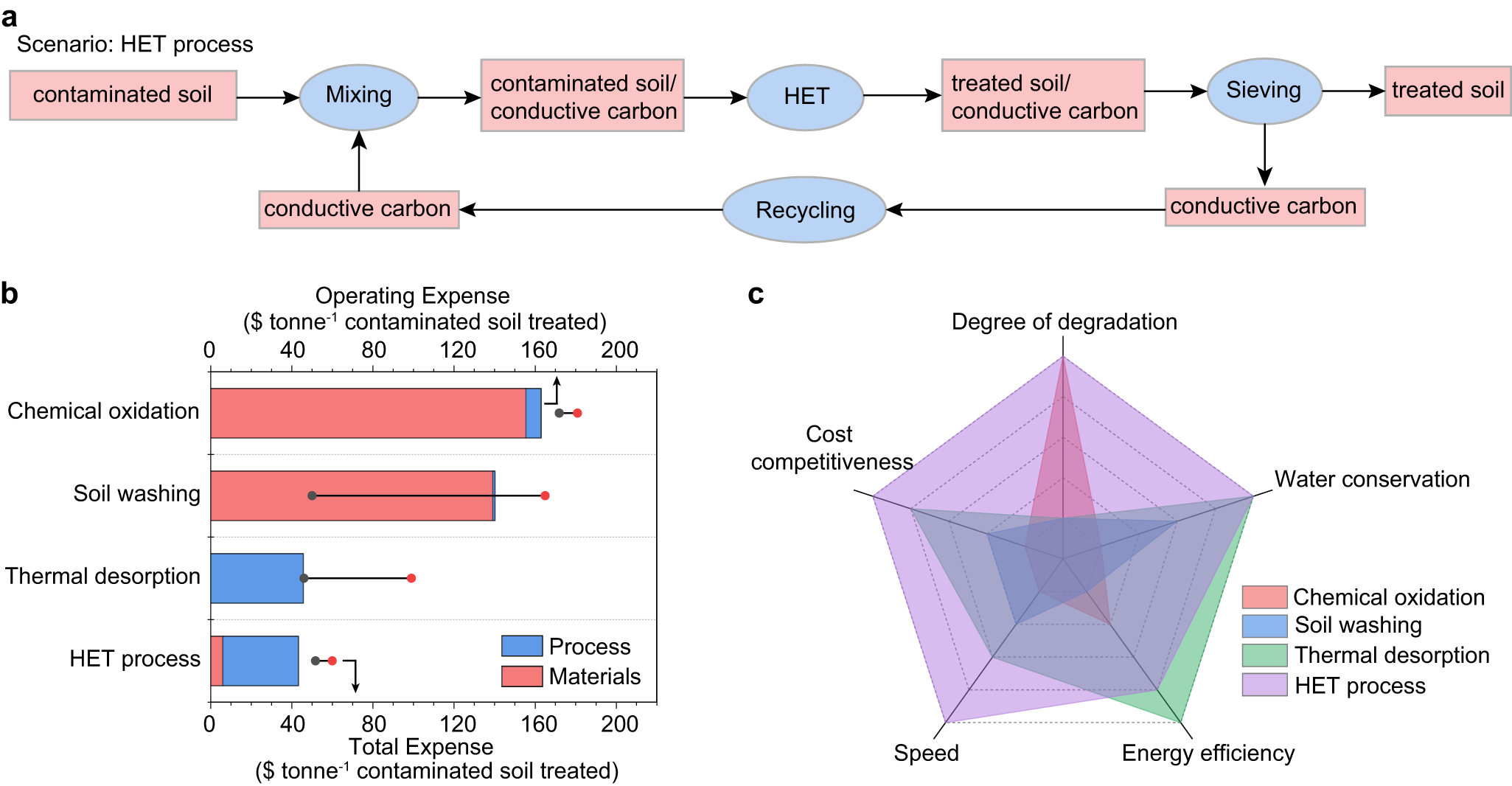

Fig. 5: Life-cycle assessment and techno-economic analysis for remediation of PAH-contaminated soil.
From: High-temperature electrothermal remediation of multi-pollutants in soil
a The material flow of the HET process. Other methods (thermal desorption, soil washing, and chemical oxidation) are shown in Supplementary Fig. 37. b Economic analysis of various scenarios. The gray dots and red dots denote lower limits and upper limits of total expense, respectively. The range of costs for soil washing and thermal desorption are large when compared to chemical oxidation and the HET process because of the varied methods used in the former processes. c Comprehensive comparison of different methods.
