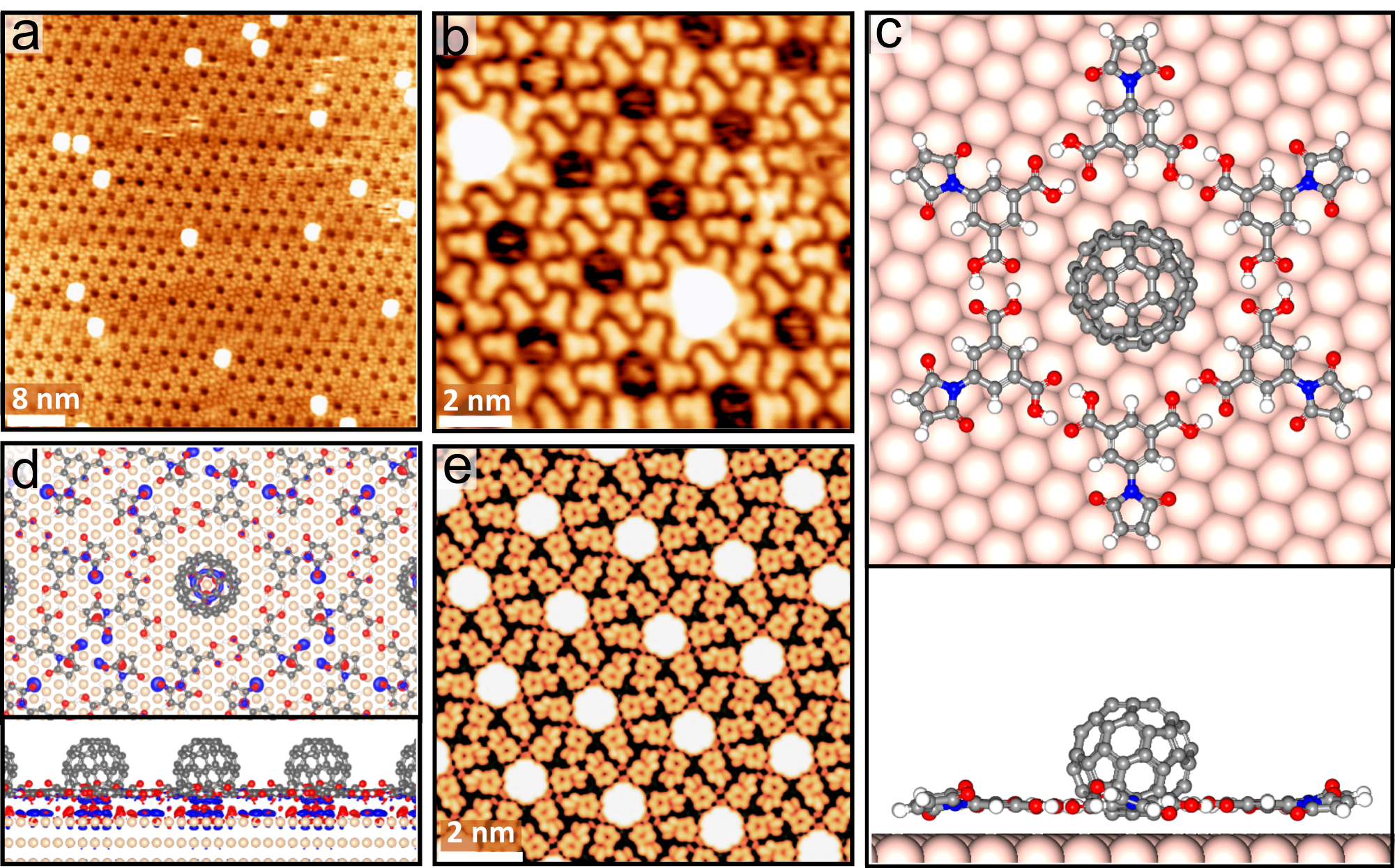

Fig. 3: Adsorption of C60 on BCPM-coated Au(111) subjected to a small C60 dosage.
From: Extending on-surface synthesis from 2D to 3D by cycloaddition with C60
a Large-scale (Vs = +1250 mV, It = +0.28 nA) and (b) Close-view (Vs = −1250 mV, It = –0.42 nA) STM images of the surface, showing a host-guest structure with C60 located in the pores of the BCPM network. c Top and side-view structural model of a flower-like unit of six BCPM molecules hosting one C60. d Electron density difference map (the isosurface value is 0.006 e/Å3), and (e), calculated STM image of the BCPM network with one C60 in each pore.
