Fig. 3: Snapshots of the developmental atlases of cortical MI and HFO.

From: Developmental atlas of phase-amplitude coupling between physiologic high-frequency oscillations and slow waves

Fig. 3: Snapshots of the developmental atlases of cortical MI and HFO.

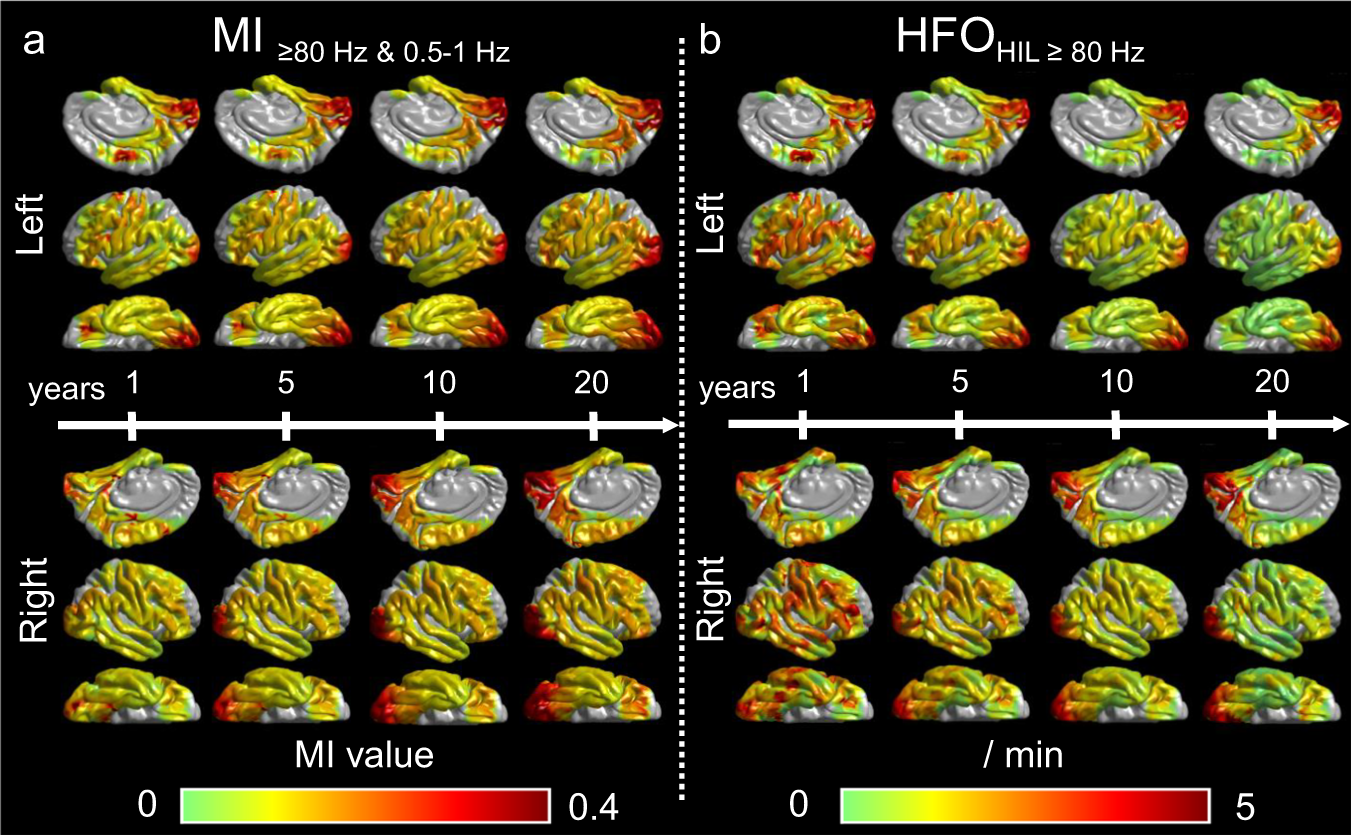

a Model-predicted MI≥80 Hz & 0.5-1 Hz and (b) HFOHIL≥80 Hz occurrence rate. Each snapshot presents model-predicted values at ages 1, 5, 10, and 20 years. MI Modulation index. MI≥80 Hz & 0.5-1 Hz denotes the strength of coupling between the amplitude of HFO≥ 80 Hz and the phase of slow-wave0.5–1Hz. The brain images in this figure were created using FreeSurfer (https://surfer.nmr.mgh.harvard.edu/fswiki/CorticalParcellation). HFOHIL High-frequency oscillation defined by the Hilbert method. Supplementary Movies 1–3 present the longitudinal values spanning from 1 to 21 years of age across multiple generations.
