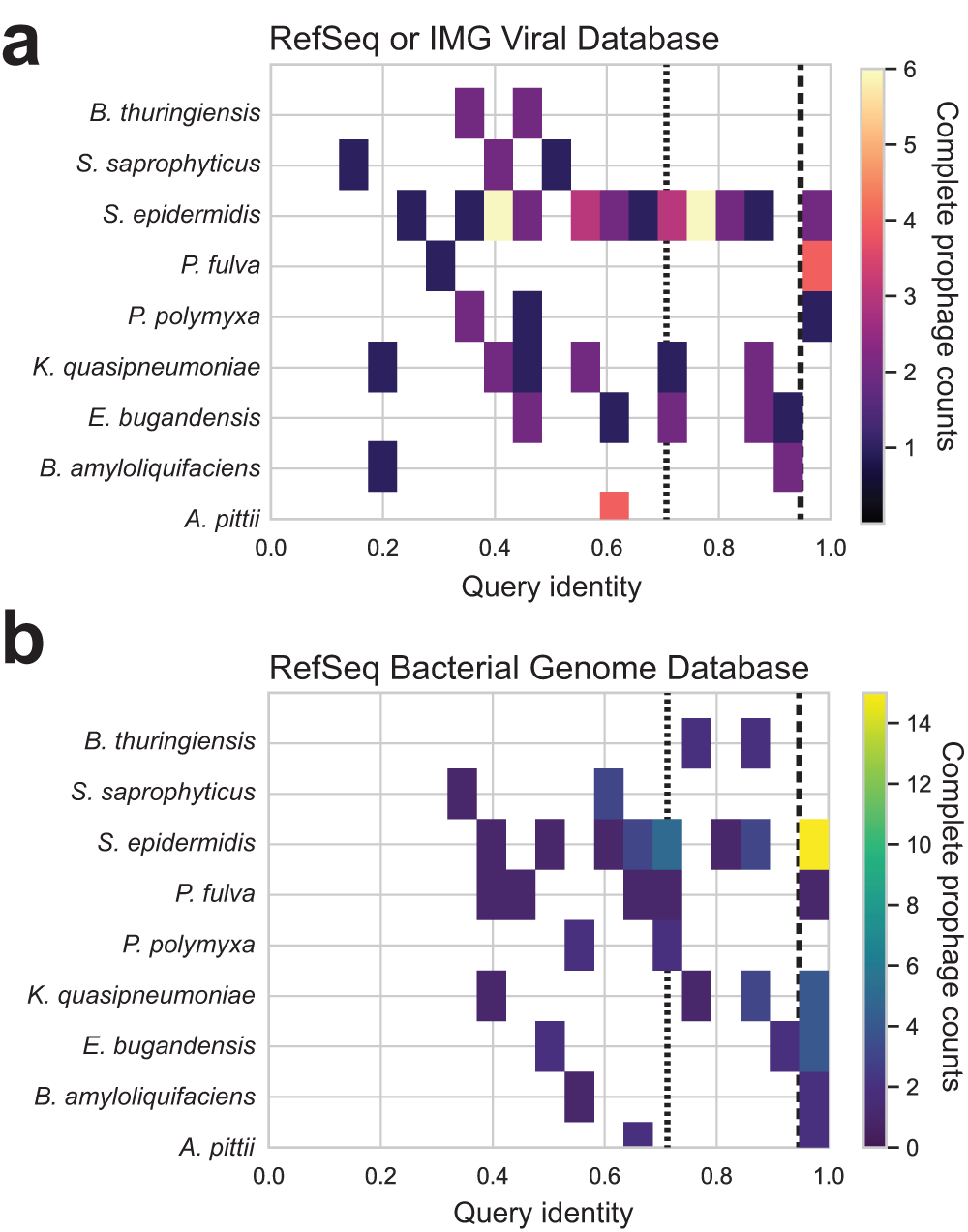

Fig. 4: Homology of complete prophage regions versus viral and genome databases.
From: Microbial adaptation to spaceflight is correlated with bacteriophage-encoded functions
a Query identity (nucleotide query coverage fraction × by identity fraction) for complete prophage regions in each species queried against the RefSeq and IMG viral databases. The higher value between the two databases was plotted. b Query identity (nucleotide query coverage fraction × by identity fraction) for complete prophage regions in each species queried against the RefSeq bacteria database. Vertical dashed lines indicate the 0.95 and 0.70 query identity cutoffs. Source data are provided as a Source Data file.
