Fig. 4: Spatial distribution of B. malayi glycolytic enzyme genes.

From: Miniature spatial transcriptomics for studying parasite-endosymbiont relationships at the micro scale

Fig. 4

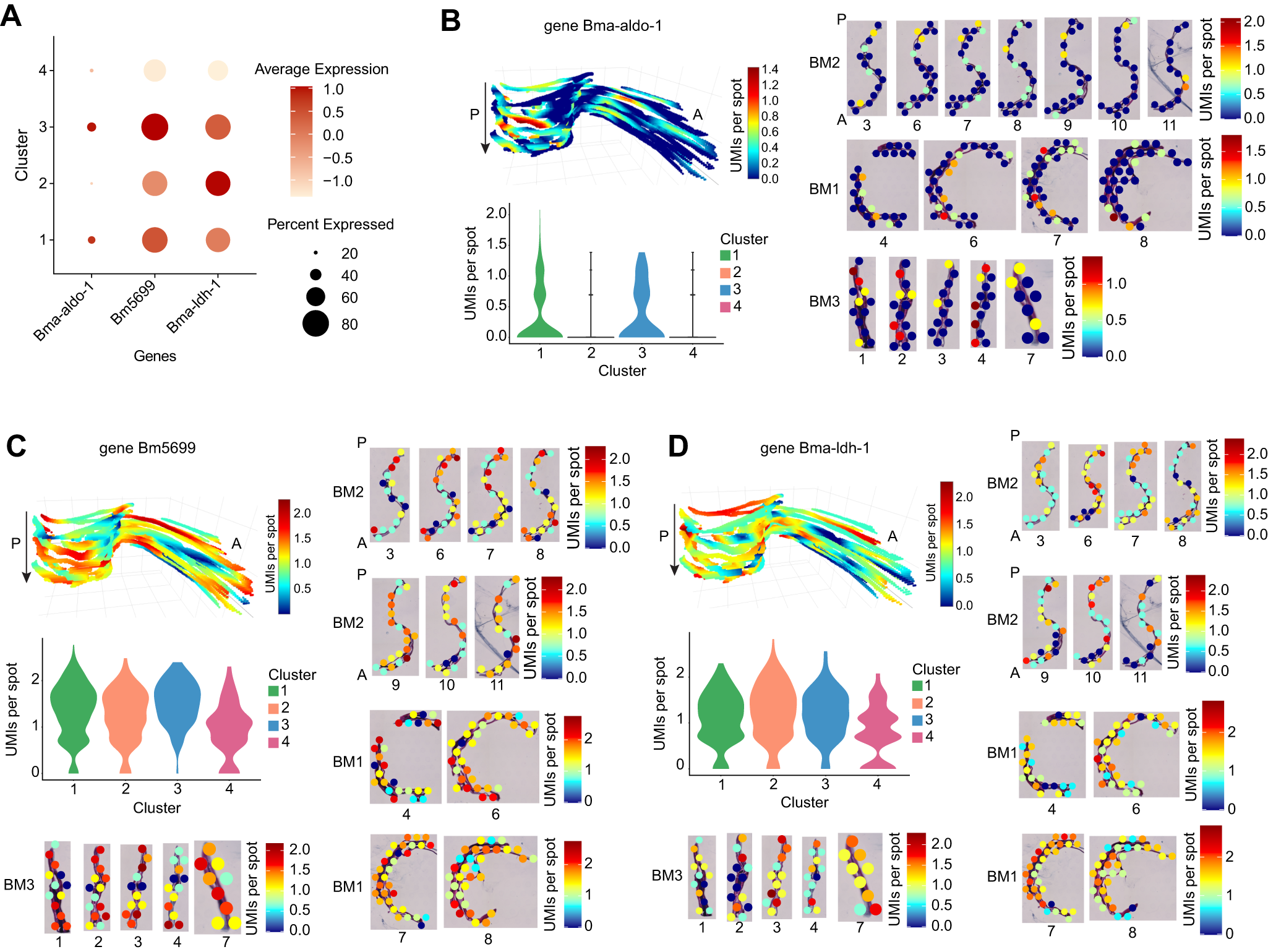

A Dotplot depicting expression of glycolytic genes across the different clusters. Average expression values indicate the average UMI counts (normalized) per spot across all spots in each cluster. Percent expressed values indicate the percentage of spots within each cluster that express each gene. B–D 3D model of gene expression in sample BM2, 2D gene expression across select sections from all 3 samples (normalized UMI counts per spot), and the gene expression distribution (normalized UMI counts per spot) across the clusters in a violin plot for glycolytic genes Bma-aldo-1 (B), Bm5699 (C), and Bma-ldh-1 (D). Magnification 20x. A: Anterior, P: Posterior, arrow in each 3D plot indicates first to last section through the worm. Sample names are to the left of each row of section images and section numbers are below each section image.
